ext2.c File Reference

#include <miniOS/fs/ext2.h>
#include <miniOS/fs/vfs.h>
#include <miniOS/drivers/block_layer.h>
#include <miniOS/drivers/block_device.h>
#include <string.h>
#include <miniOS/io.h>
#include <miniOS/types.h>

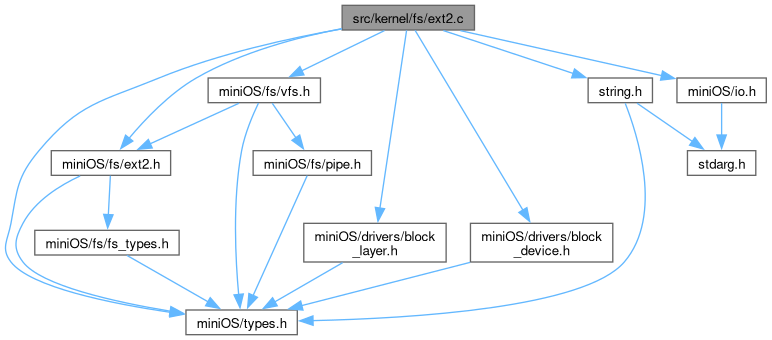

Include dependency graph for ext2.c:

Classes
struct	find_ctx
struct	dir_empty_ctx

Functions
static int	read_block (uint32_t block_no, void *buf)
static int	write_block (uint32_t block_no, const void *buf)
static int	read_inode (uint32_t ino, ext2_inode_t *out)
static int	write_inode (uint32_t ino, const ext2_inode_t *in)
static int	free_block (uint32_t block_no)
int	ext2_truncate_inode (uint32_t ino, uint64_t new_size)
static int	allocate_block (uint32_t *block_no)
static int	allocate_inode (uint32_t *ino)
static int	free_inode (uint32_t ino)
static uint8_t	inode_vfs_type (const ext2_inode_t *inode)
static int	inode_data_block (const ext2_inode_t *inode, uint32_t block_idx, uint32_t *block_no)
int	ext2_mount (uint64_t part_lba_start, uint64_t part_lba_end)
int	ext2_readdir (uint32_t dir_ino, uint64_t *offset, vfs_dirent_cb_t cb, void *ud)
static int	find_entry_cb (const char *name, uint8_t nlen, uint32_t ino, uint8_t ftype, void *ud)
static int	names_match (const char *name, uint8_t nlen, const char *target)
static int	dir_empty_cb (const char *name, uint8_t nlen, uint32_t ino, uint8_t ftype, void *ud)
static int	ext2_dir_is_empty (uint32_t dir_ino)
static int	ext2_remove_dirent (uint32_t parent_ino, const char *name, uint32_t *removed_ino_out, uint8_t *removed_ftype_out)
int	ext2_lookup (const char *path, vfs_inode_info_t *out)
int	ext2_read_file (uint32_t ino, uint64_t off, void *buf, uint32_t len)
: Null-terminated filename (no '/' allowed).
ext2_create() - Allocate a new inode and add a directory entry to @parent_ino. @parent_ino: Inode number of the parent directory. @out_ino: Set to the new inode number on success. Algorithm: Allocate a new inode number via allocate_inode(). Initialise the inode struct: i_mode=EXT2_S_IFREG|0644, i_links_count=1, i_size=0, i_blocks=0, all i_block[]=0. Zero all other fields. Write the new inode to disk via write_inode(). Insert a new ext2_dirent_t in the parent directory: a. Iterate parent directory blocks; find the last block with space. "Space" = last entry's actual size (8 + name_len rounded up to 4) is less than its rec_len (meaning the last entry was padded). b. Shrink the last entry's rec_len to its minimal size (8 + name_len aligned up to 4 bytes), then append the new entry using the freed space. c. The new entry's rec_len fills to the end of the block. d. If no space in existing blocks, allocate a new block, update i_block[k] and i_blocks in the parent inode, write parent inode back, then place the new entry at the start of the new block with rec_len=g_block_size. Write the modified directory block back to disk. Returns : 0 on success, -1 on I/O error, -2 on ENOSPC (no free inodes/blocks).
int	ext2_create (uint32_t parent_ino, const char *name, uint16_t mode, uint32_t *out_ino)
int	ext2_readlink (uint32_t ino, char *buf, uint32_t len)
: Null-terminated filename (no '/' allowed; max 255 chars).
ext2_symlink() - Create a new symlink inode and directory entry. @parent_ino: Inode number of the parent directory. @target: Symlink target string (null-terminated; stored as-is). Fast-link used when strlen(target) <= 60; target stored inline in i_block[]. Block-link used when strlen(target) > 60; allocates one data block. Directory entry file_type set to 7 (EXT2_FT_SYMLINK). Returns : 0 on success, -1 on I/O error, -2 on ENOSPC.
int	ext2_symlink (uint32_t parent_ino, const char *name, const char *target)
int	ext2_write_file (uint32_t ino, uint64_t off, const void *buf, uint32_t len)
int	ext2_flush_inode (uint32_t ino)

Variables
static uint64_t	g_part_start
static uint64_t	g_part_end
static uint32_t	g_block_size
static uint32_t	g_sectors_per_block
static uint32_t	g_inodes_per_group
static uint32_t	g_blocks_per_group
static uint32_t	g_inode_size
static uint32_t	g_first_data_block
static uint32_t	g_sb_blocks_count
static uint32_t	g_sb_inodes_count
static uint8_t	g_block_buf [4096]
static uint8_t	g_indirect_buf [4096]
static uint8_t	g_dindirect_buf [4096]

: Null-terminated directory name (no '/' allowed).
ext2_mkdir() - Create a new directory inode and add a directory entry in @parent_ino. @parent_ino: Inode number of the parent directory. @out_ino: Set to the new directory inode number on success. Algorithm: Allocate a new inode and a data block. Initialise the new inode: i_mode=EXT2_S_IFDIR|0755, i_links_count=2 (one for the parent's dirent, one for the '.' entry inside the new dir), i_size=g_block_size, i_blocks=g_block_size/512, i_block[0]=new_block. Write the new inode's data block with '.' (points to new_ino) and '..' (points to parent_ino) directory entries filling the full block. Insert a new ext2_dirent_t (file_type=EXT2_FT_DIR) in the parent directory, using the same split-and-append or new-block logic as ext2_create(). Increment the parent inode's i_links_count (the '..' hard link). Increment bg_used_dirs_count in the block group descriptor. Returns : 0 on success, -1 on I/O error, -2 on ENOSPC (no free inodes/blocks).
static vfs_ops_t	g_ext2_vfs_ops
int	ext2_mkdir (uint32_t parent_ino, const char *name, uint32_t *out_ino)
int	ext2_rmdir (uint32_t parent_ino, const char *name)
static int	ext2_add_dirent (uint32_t parent_ino, const char *name, uint32_t ino, uint8_t ftype)
static uint8_t	ext2_mode_to_ft (uint16_t mode)
static int	ext2_rename (uint32_t old_parent_ino, const char *old_name, uint32_t new_parent_ino, const char *new_name)
static int	ext2_unlink (uint32_t parent_ino, const char *name)
int	ext2_chmod (uint32_t ino, uint16_t mode)
int	ext2_mknod (uint32_t parent_ino, const char *name, uint16_t mode, uint32_t dev, uint32_t *out_ino)
static int	ext2_statfs (vfs_statfs_t *out)
static int	ext2_fs_mount (const char *source, const char *target, const void *data)
void	ext2_init (void)

Function Documentation

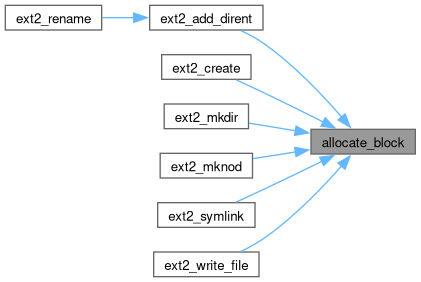

allocate_block()

int allocate_block ( uint32_t * block_no )

static

Here is the call graph for this function:

Here is the caller graph for this function:

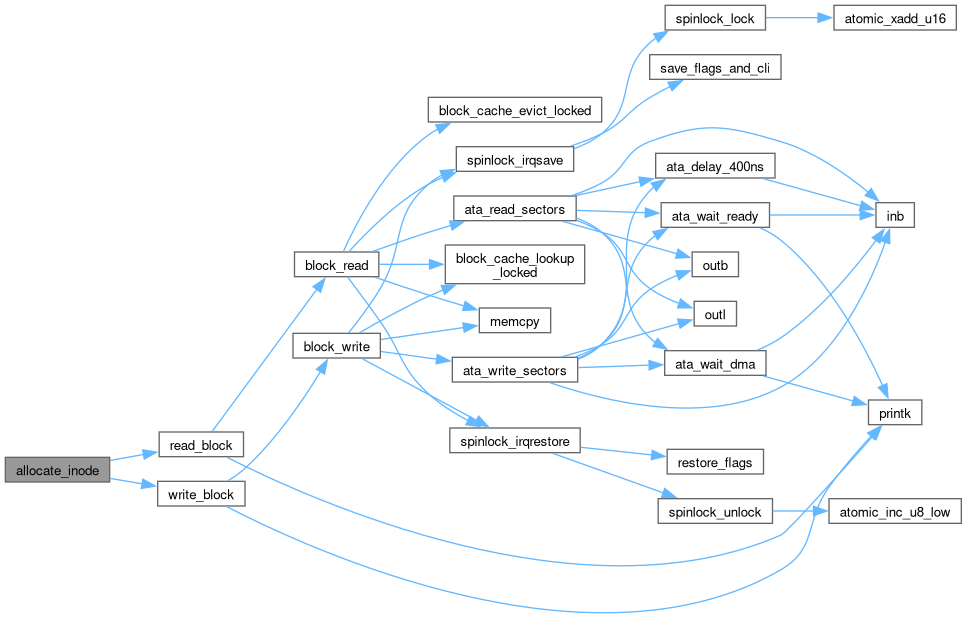

allocate_inode()

int allocate_inode ( uint32_t * ino )

static

Here is the call graph for this function:

Here is the caller graph for this function:

dir_empty_cb()

int dir_empty_cb ( const char * name, uint8_t nlen, uint32_t ino, uint8_t ftype, void * ud )

static

Here is the caller graph for this function:

ext2_add_dirent()

int ext2_add_dirent ( uint32_t parent_ino, const char * name, uint32_t ino, uint8_t ftype )

static

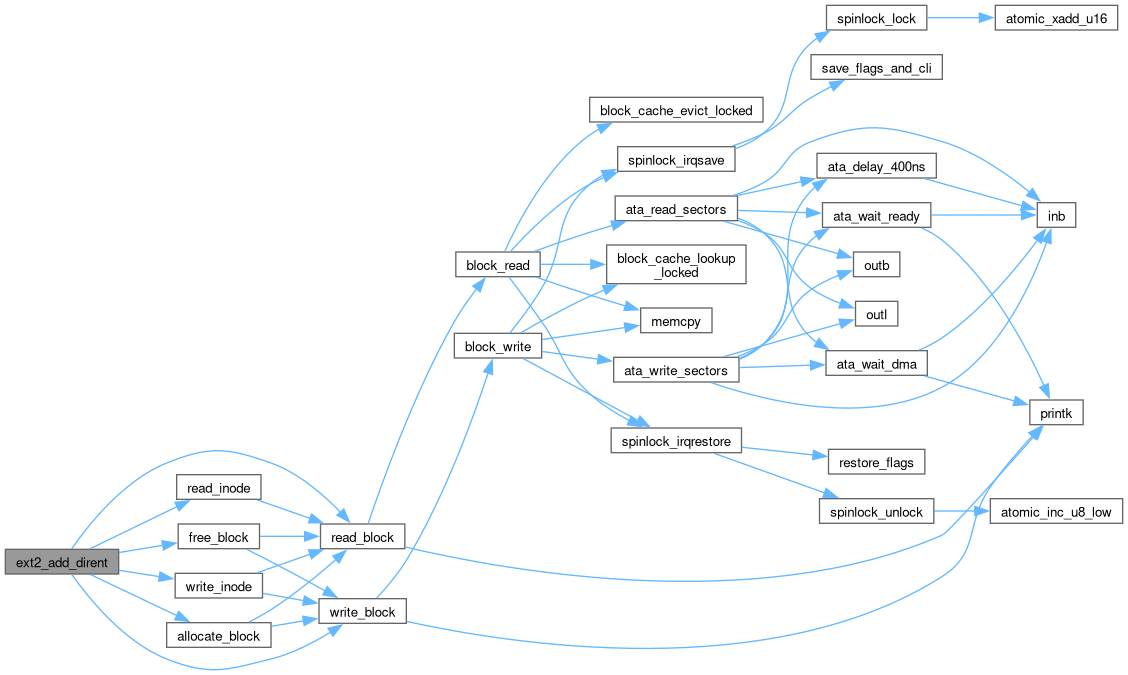

Here is the call graph for this function:

Here is the caller graph for this function:

ext2_chmod()

int ext2_chmod	(	uint32_t	ino,
		uint16_t	mode )

ext2_chmod() - Change permission bits of an inode on disk. @ino: Inode number. @mode: New permission bits (low 12 bits); file type bits are preserved.

Reads the inode, replaces the low 12 bits of i_mode, writes it back.

Returns

: 0 on success, -1 on I/O error.

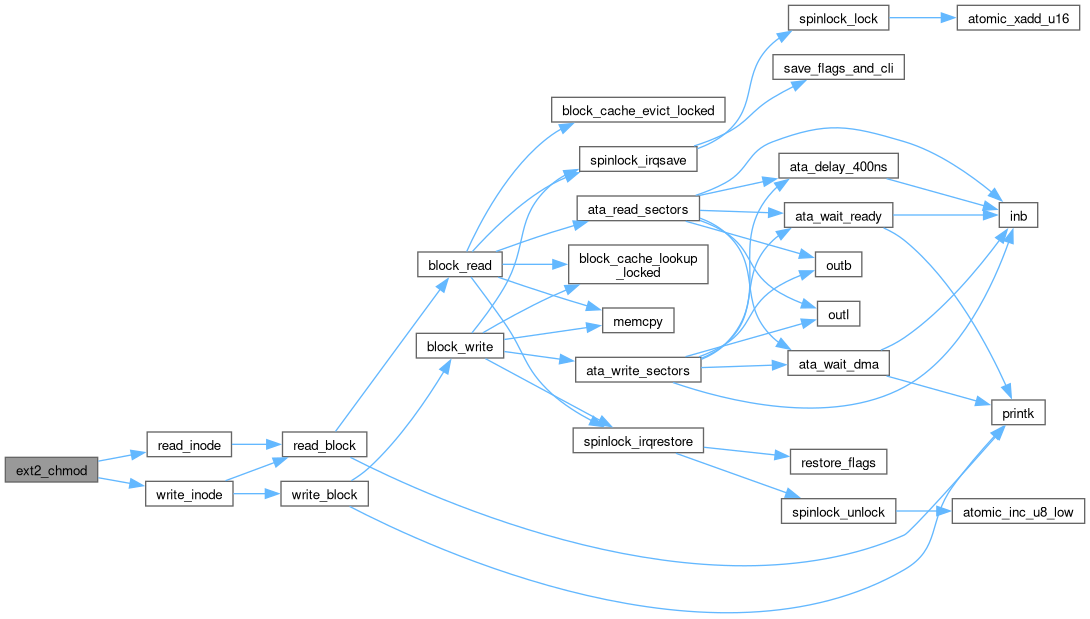

Here is the call graph for this function:

ext2_create()

int ext2_create	(	uint32_t	parent_ino,
		const char *	name,
		uint16_t	mode,
		uint32_t *	out_ino )

Here is the call graph for this function:

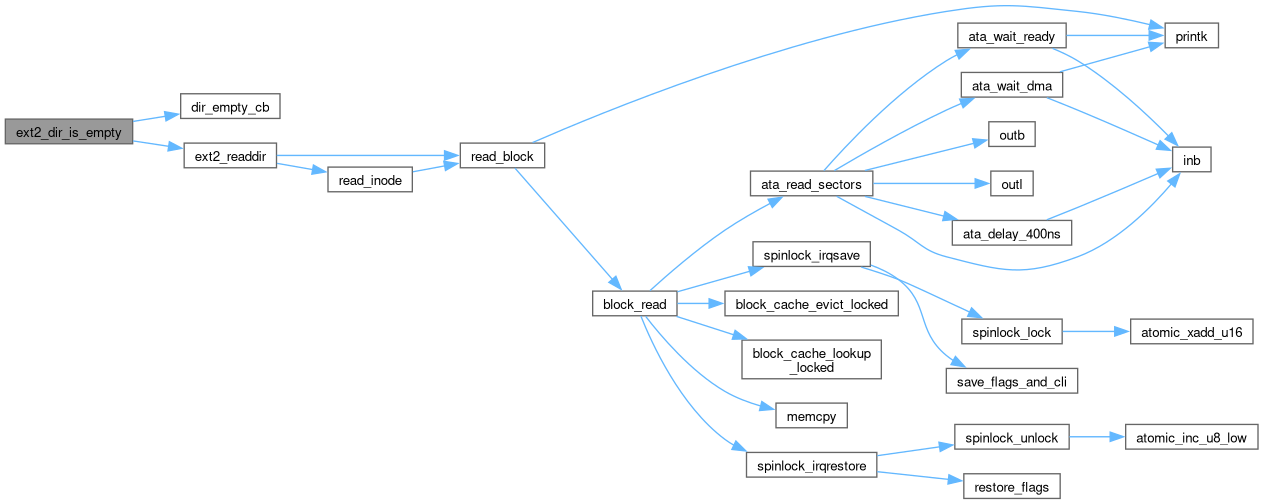

ext2_dir_is_empty()

int ext2_dir_is_empty ( uint32_t dir_ino )

static

Here is the call graph for this function:

Here is the caller graph for this function:

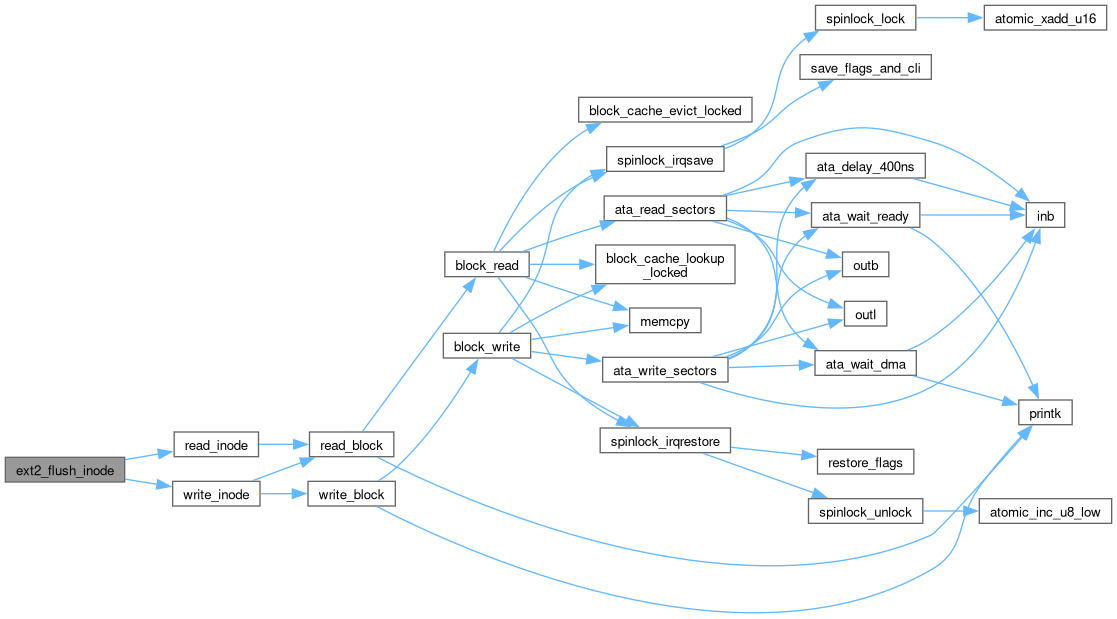

ext2_flush_inode()

int ext2_flush_inode

(

uint32_t

ino

)

ext2_flush_inode() - Write the current inode state back to disk. @ino: Inode number to flush.

Reads the inode from disk and immediately writes it back. Used by vfs_close() (via ops->flush) to ensure i_size and i_block[] are durable after writes. The ATA flush command is issued separately by the caller.

Returns

: 0 on success, -1 on I/O error.

Here is the call graph for this function:

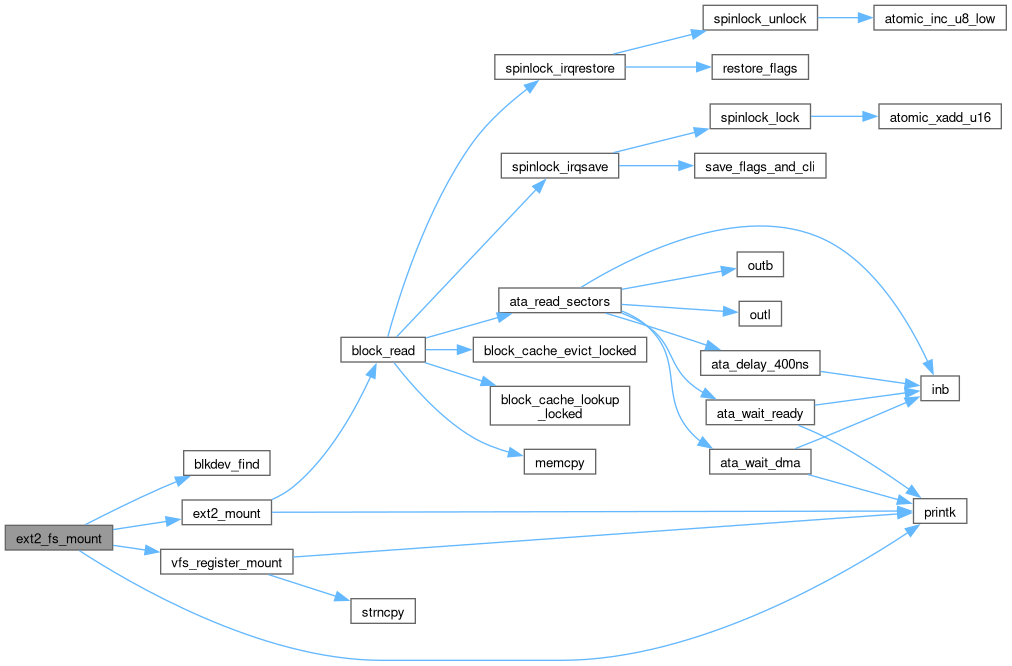

ext2_fs_mount()

int ext2_fs_mount ( const char * source, const char * target, const void * data )

static

Here is the call graph for this function:

Here is the caller graph for this function:

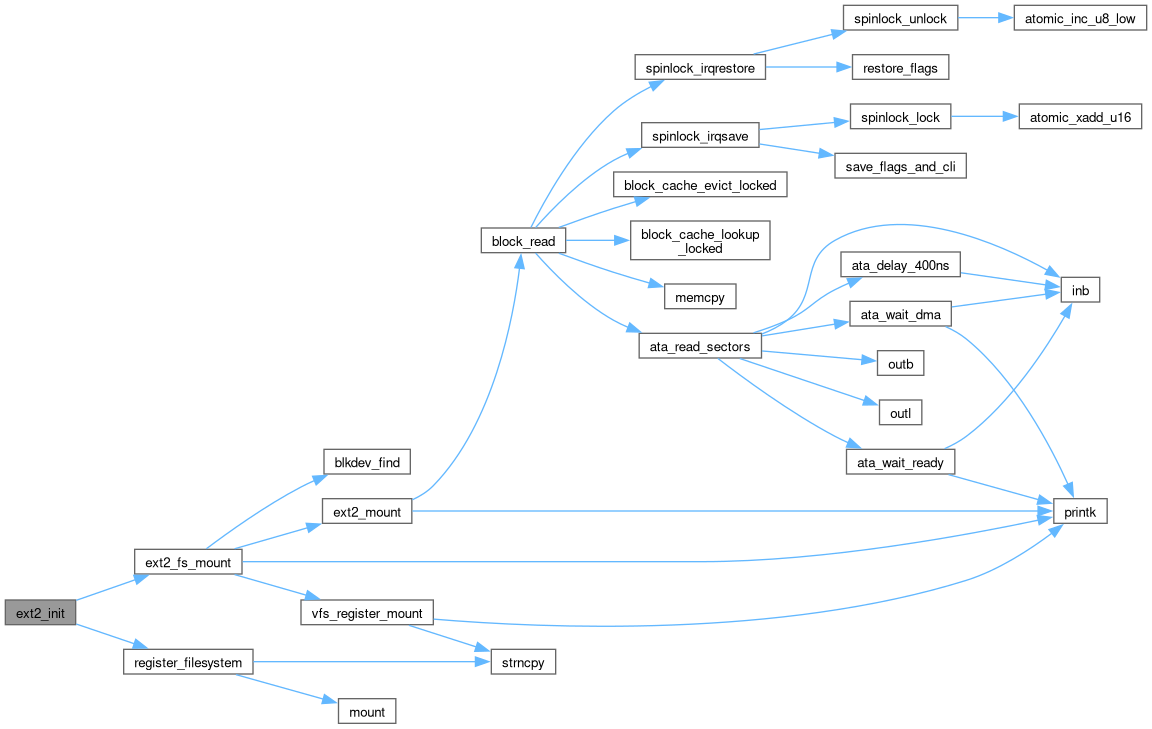

ext2_init()

void ext2_init

(

void

)

ext2_init() - Register the ext2 filesystem type with the VFS registry.

After this call, vfs_mount_fstype("ext2", source, target, data) can be used to mount any ext2 partition by passing a vfs_mount_data_t as @data. ext2_init() does NOT mount anything itself; it only registers the type. Call once during kernel startup, before the first ext2 mount.

Here is the call graph for this function:

Here is the caller graph for this function:

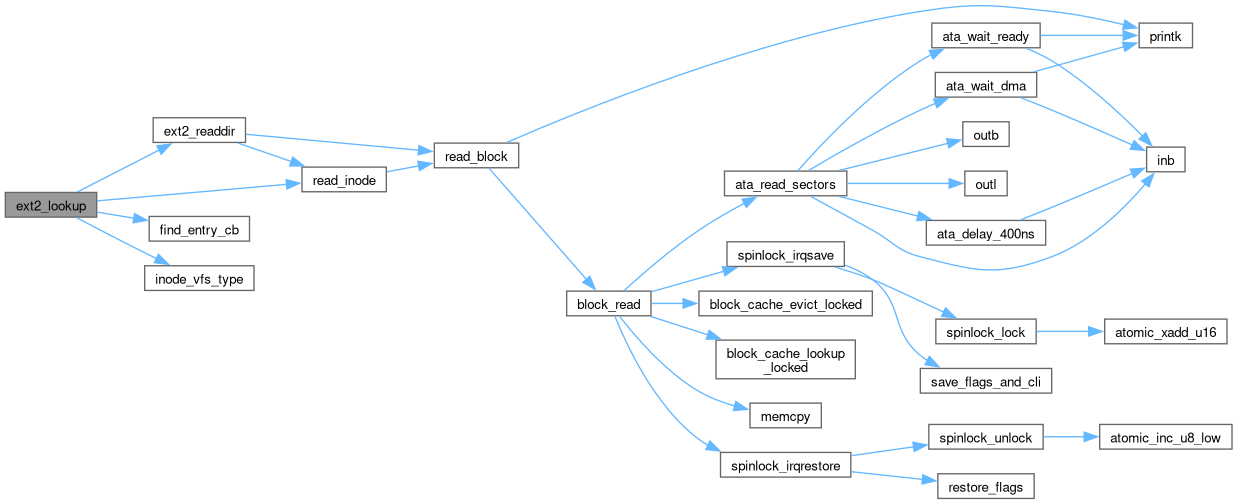

ext2_lookup()

int ext2_lookup	(	const char *	path,
		vfs_inode_info_t *	out )

ext2_lookup() - Resolve path components starting from root inode 2. @path: Absolute path; must start with '/'.

Tokenises @path on '/' using strtok-like manual scanning. For each component, calls ext2_readdir with find_entry_cb to search the current directory inode for a matching entry. Updates current_ino to the matched child inode and continues to the next component. Returns current_ino after all components.

Returns

: Final inode number (>= 2), or 0 if any component is not found.

Here is the call graph for this function:

ext2_mkdir()

int ext2_mkdir	(	uint32_t	parent_ino,
		const char *	name,
		uint32_t *	out_ino )

Here is the call graph for this function:

ext2_mknod()

int ext2_mknod	(	uint32_t	parent_ino,
		const char *	name,
		uint16_t	mode,
		uint32_t	dev,
		uint32_t *	out_ino )

ext2_mknod() - Create a char or block device inode in @parent_ino.

Allocates an inode with i_mode = @mode (EXT2_S_IFCHR|perms or EXT2_S_IFBLK|perms), i_links_count = 1, no data blocks, and stores @dev in i_block[0] (traditional Linux ext2 device number encoding). Inserts a directory entry with EXT2_FT_CHRDEV or EXT2_FT_BLKDEV into the parent directory using the same split-and-append logic as ext2_create.

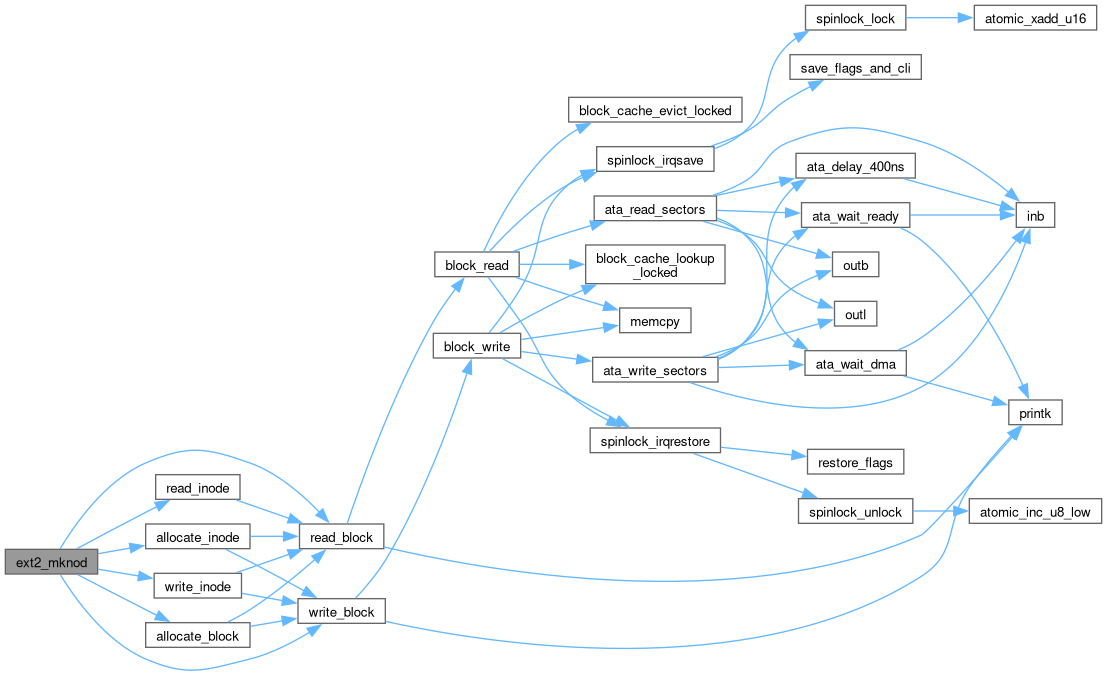

Here is the call graph for this function:

ext2_mode_to_ft()

uint8_t ext2_mode_to_ft ( uint16_t mode )

static

Here is the caller graph for this function:

ext2_mount()

int ext2_mount	(	uint64_t	part_lba_start,
		uint64_t	part_lba_end )

ext2_mount() - Read superblock and initialise filesystem global state. @part_lba_start: LBA of partition start; stored in g_part_start.

Reads 2 sectors at part_lba_start + 2 (superblock at 1024-byte offset). Checks s_magic == 0xEF53. Sets g_block_size = 1024 << s_log_block_size, g_sectors_per_block, g_inodes_per_group, g_inode_size (128 for rev 0, s_inode_size for rev 1), g_first_data_block. Reads block group descriptor table at block g_first_data_block+1 to obtain inode table base. Single block group assumed (8 MiB image has exactly one group).

Returns

: 0 on success, -1 on ATA I/O error or invalid magic.

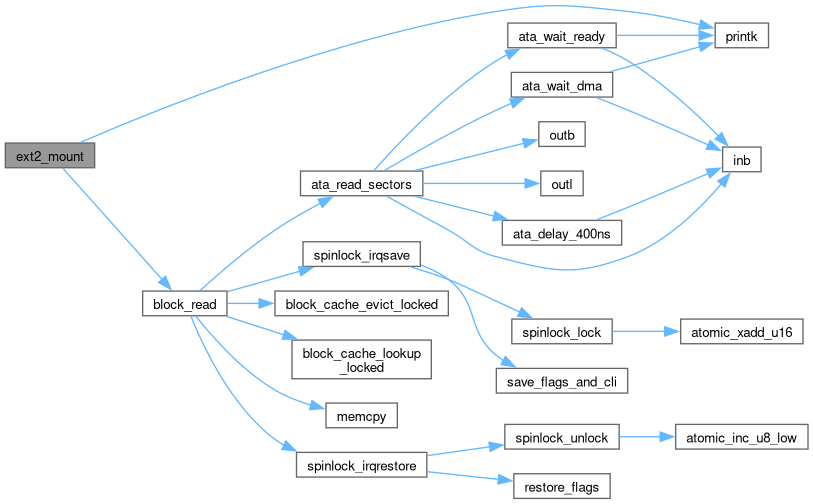

Here is the call graph for this function:

Here is the caller graph for this function:

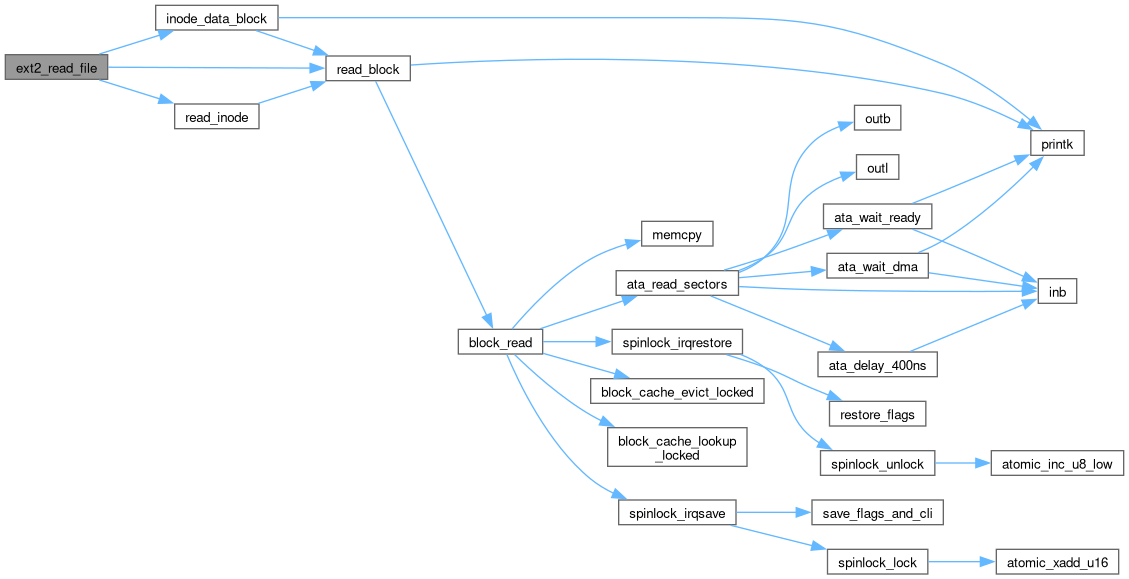

ext2_read_file()

int ext2_read_file	(	uint32_t	ino,
		uint64_t	off,
		void *	buf,
		uint32_t	len )

ext2_read_file() - Copy file data from inode blocks into caller's buffer. @ino: Inode number of the regular file. @off: Starting byte offset within the file. @buf: Destination buffer. @len: Requested byte count.

Reads the inode to get i_size and i_block[]. Clamps read to i_size. Computes starting block index as off / g_block_size, byte offset within block as off % g_block_size. Resolves each logical block through direct pointers and the first single-indirect block, then copies the relevant slice. Iterates until @len bytes are copied or EOF.

Returns

: Bytes copied (0..@len), or -1 on I/O error.

Here is the call graph for this function:

ext2_readdir()

int ext2_readdir	(	uint32_t	dir_ino,
		uint64_t *	offset,
		vfs_dirent_cb_t	cb,
		void *	ud )

ext2_readdir() - Iterate directory entries in all direct blocks of a directory inode. @dir_ino: Directory inode number. @cb: Called for each valid entry (inode != 0) with name (not null-terminated), name_len, child inode, file_type, and @ud. @ud: Forwarded to @cb unchanged.

Reads each direct block (i_block[0..11]) of the directory inode. Within each block, walks ext2_dirent_t records by incrementing a byte pointer by rec_len. Skips entries with inode==0 (deleted or padding entries). Stops block iteration when the block pointer address reaches block_end. Returns early if @cb returns non-zero.

Returns

: 0 when all entries visited, or first non-zero return value from @cb.

Here is the call graph for this function:

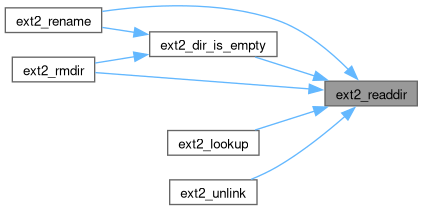

Here is the caller graph for this function:

ext2_readlink()

int ext2_readlink	(	uint32_t	ino,
		char *	buf,
		uint32_t	len )

ext2_readlink() - Read the target string of a symlink inode. @ino: Inode number of the symlink (i_mode must have EXT2_S_IFLNK set). @buf: Output buffer. NOT null-terminated (POSIX readlink semantics). @len: Maximum bytes to copy into buf.

Fast-link (i_blocks == 0): target stored inline in i_block[0..14] bytes. Block-link (i_blocks > 0): target stored in data block i_block[0].

Returns

: Number of bytes copied (>= 0), or -1 on error.

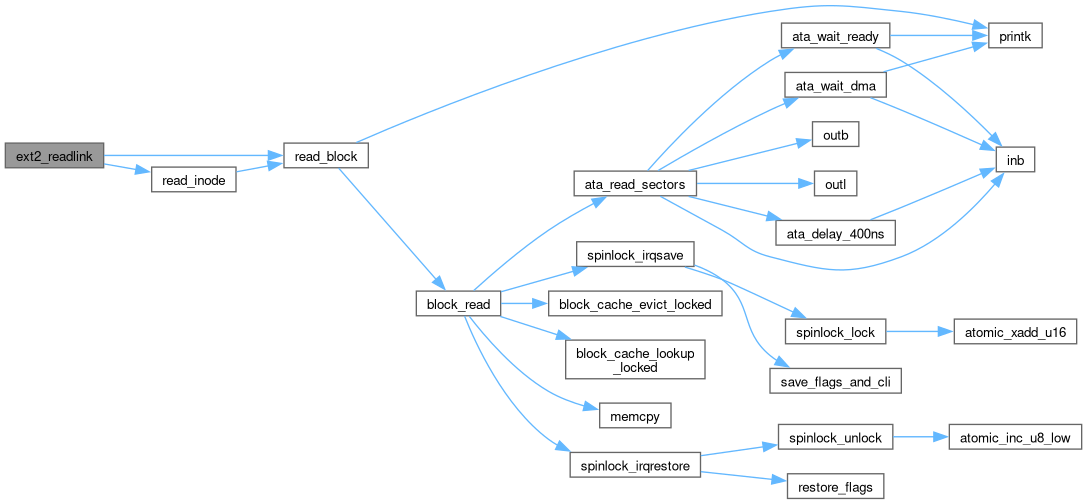

Here is the call graph for this function:

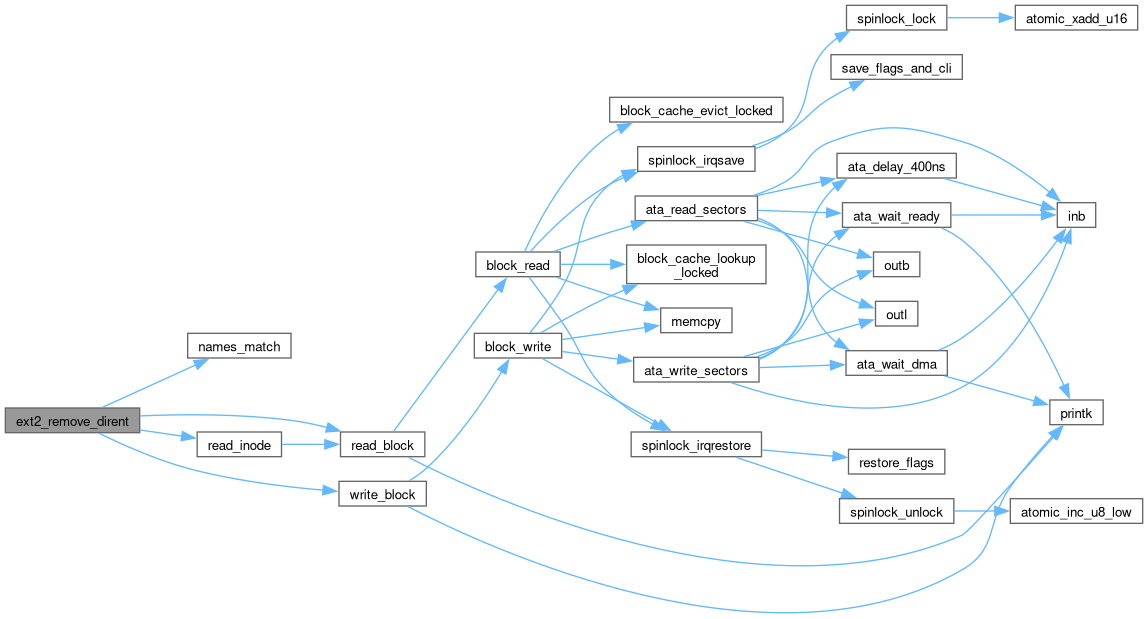

ext2_remove_dirent()

int ext2_remove_dirent ( uint32_t parent_ino, const char * name, uint32_t * removed_ino_out, uint8_t * removed_ftype_out )

static

Here is the call graph for this function:

Here is the caller graph for this function:

ext2_rename()

int ext2_rename ( uint32_t old_parent_ino, const char * old_name, uint32_t new_parent_ino, const char * new_name )

static

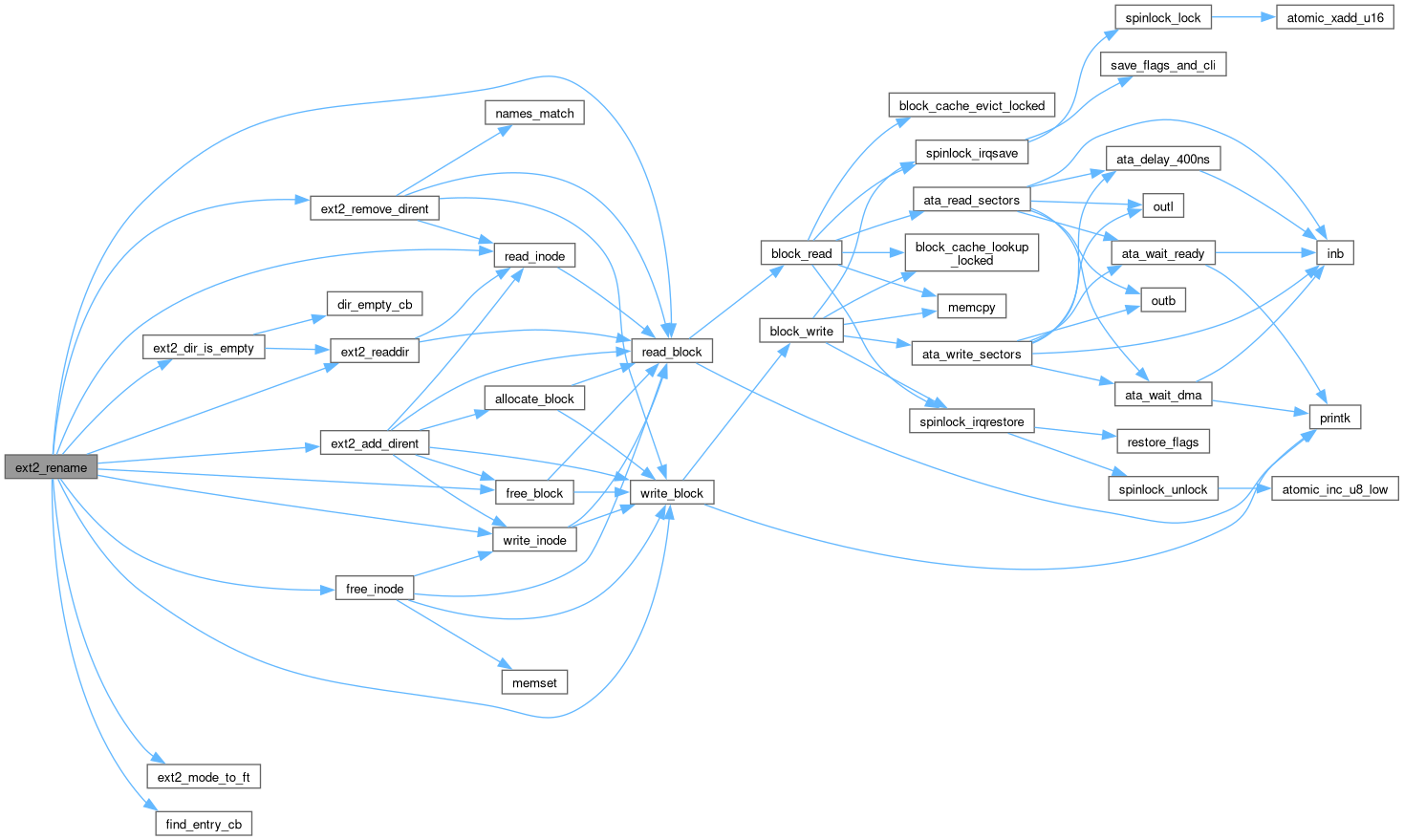

Here is the call graph for this function:

ext2_rmdir()

int ext2_rmdir	(	uint32_t	parent_ino,
		const char *	name )

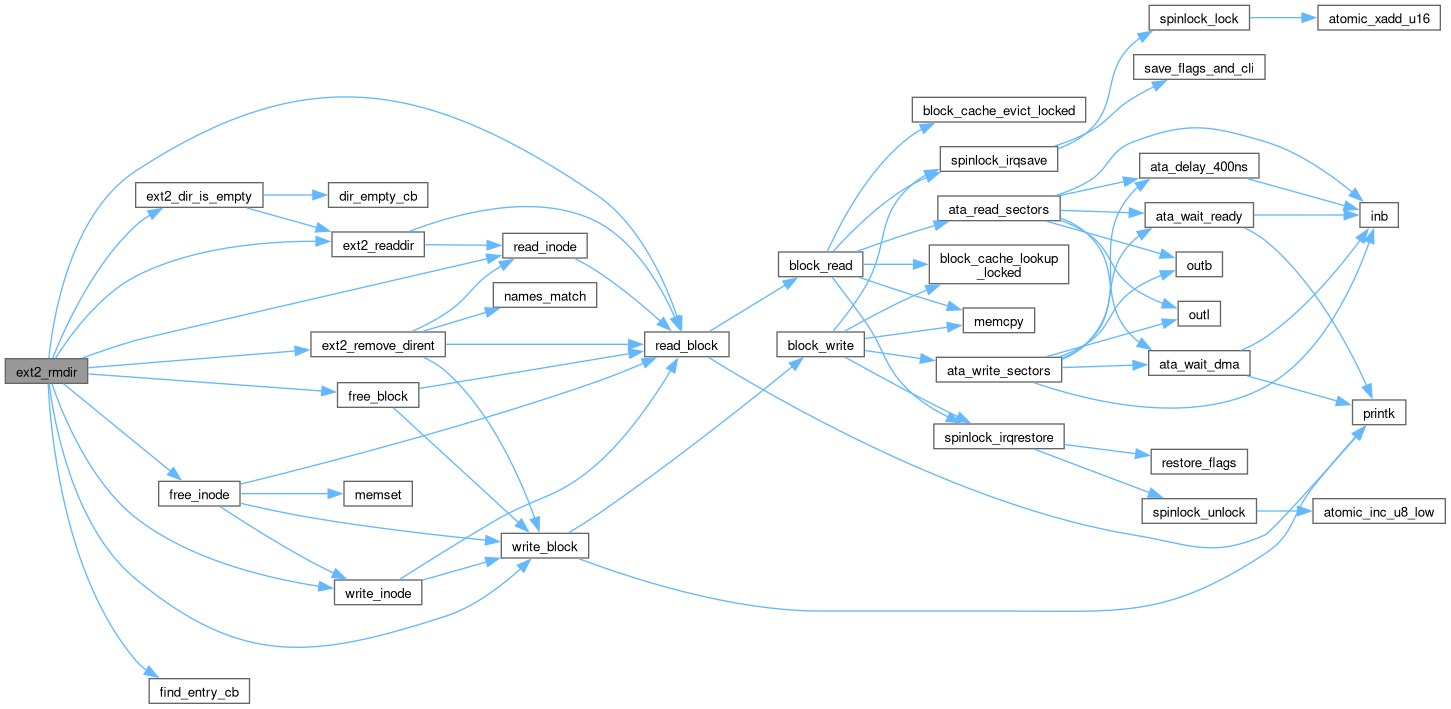

Here is the call graph for this function:

ext2_statfs()

int ext2_statfs ( vfs_statfs_t * out )

static

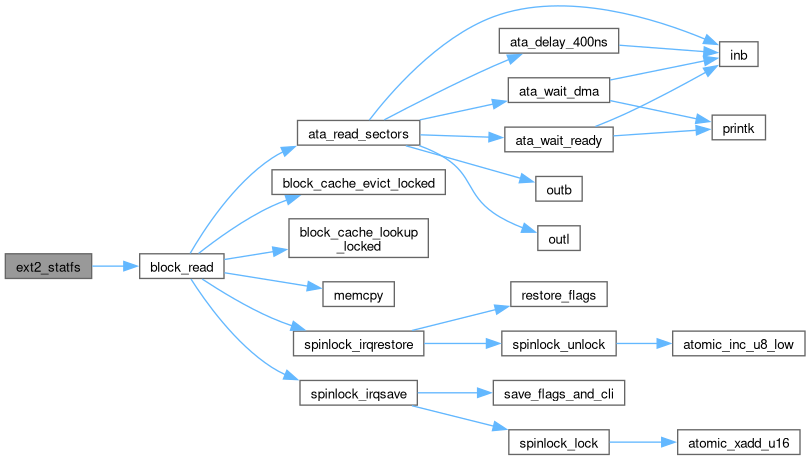

Here is the call graph for this function:

ext2_symlink()

int ext2_symlink	(	uint32_t	parent_ino,
		const char *	name,
		const char *	target )

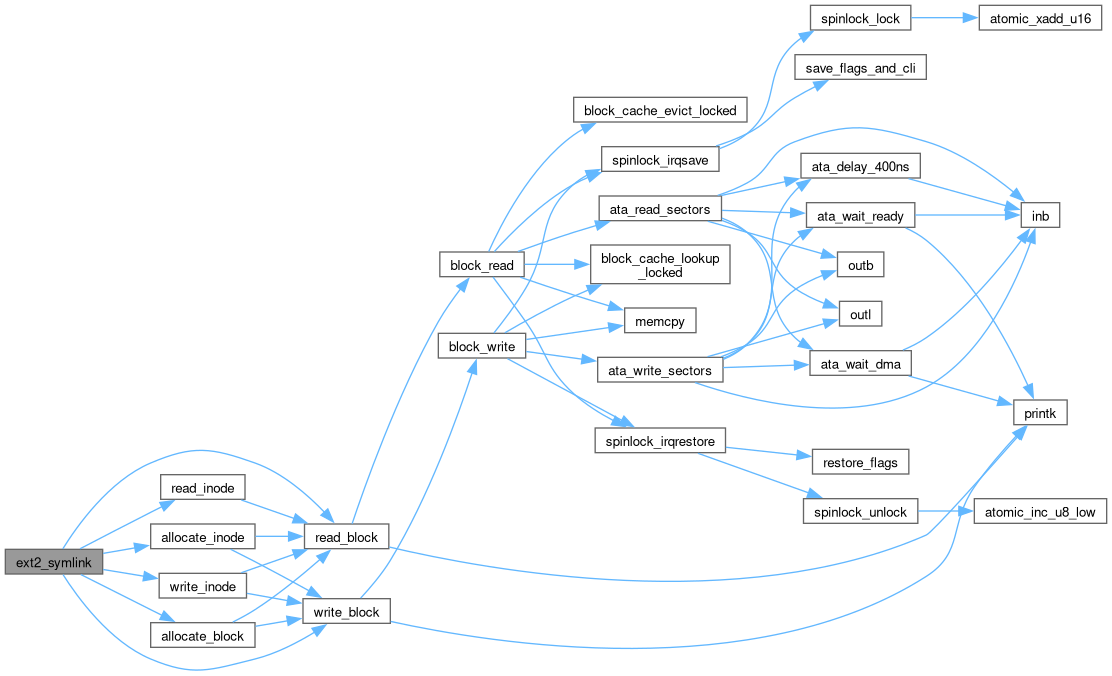

Here is the call graph for this function:

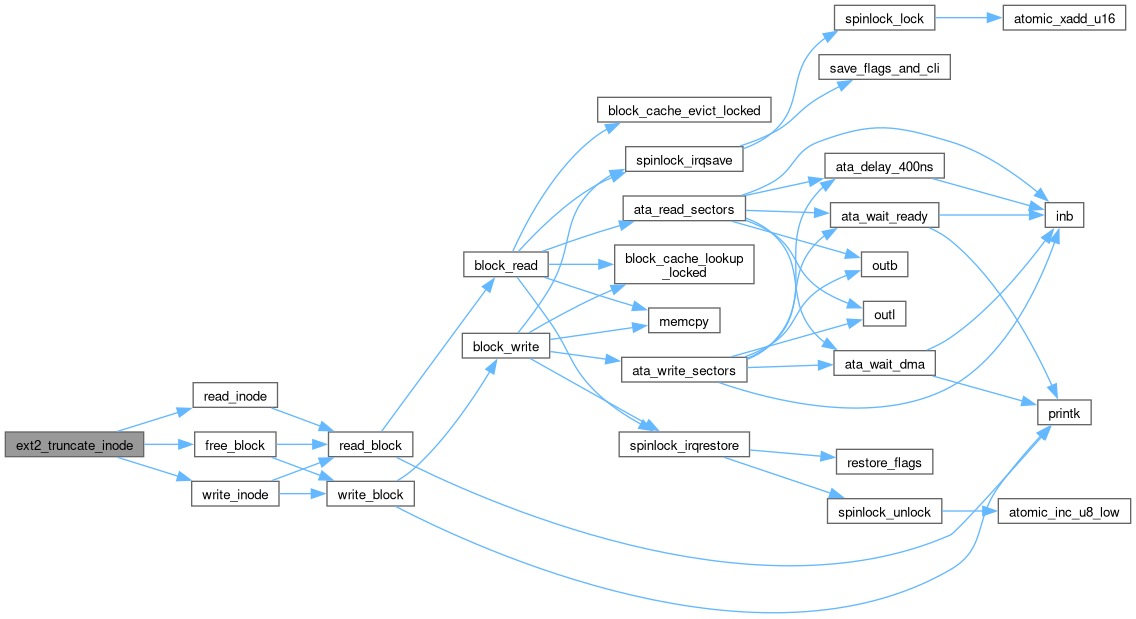

ext2_truncate_inode()

int ext2_truncate_inode	(	uint32_t	ino,
		uint64_t	new_size )

ext2_truncate_inode() - Truncate a regular file to zero bytes. @ino: Inode number of the file to truncate.

Walks i_block[0..11] (direct blocks) and i_block[12..14] (indirect pointers, treated as direct block references — single-group, small files only use direct blocks). Frees each allocated block via free_block(). Clears all block pointer entries in the inode (i_block[0..14] = 0). Resets i_size = 0 and i_blocks = 0. Writes the updated inode back to disk.

Only truncates regular files (i_mode & EXT2_S_IFREG). Returns -1 for directories or other non-regular types.

Returns

: 0 on success, -1 on type mismatch or I/O error.

Here is the call graph for this function:

ext2_unlink()

int ext2_unlink ( uint32_t parent_ino, const char * name )

static

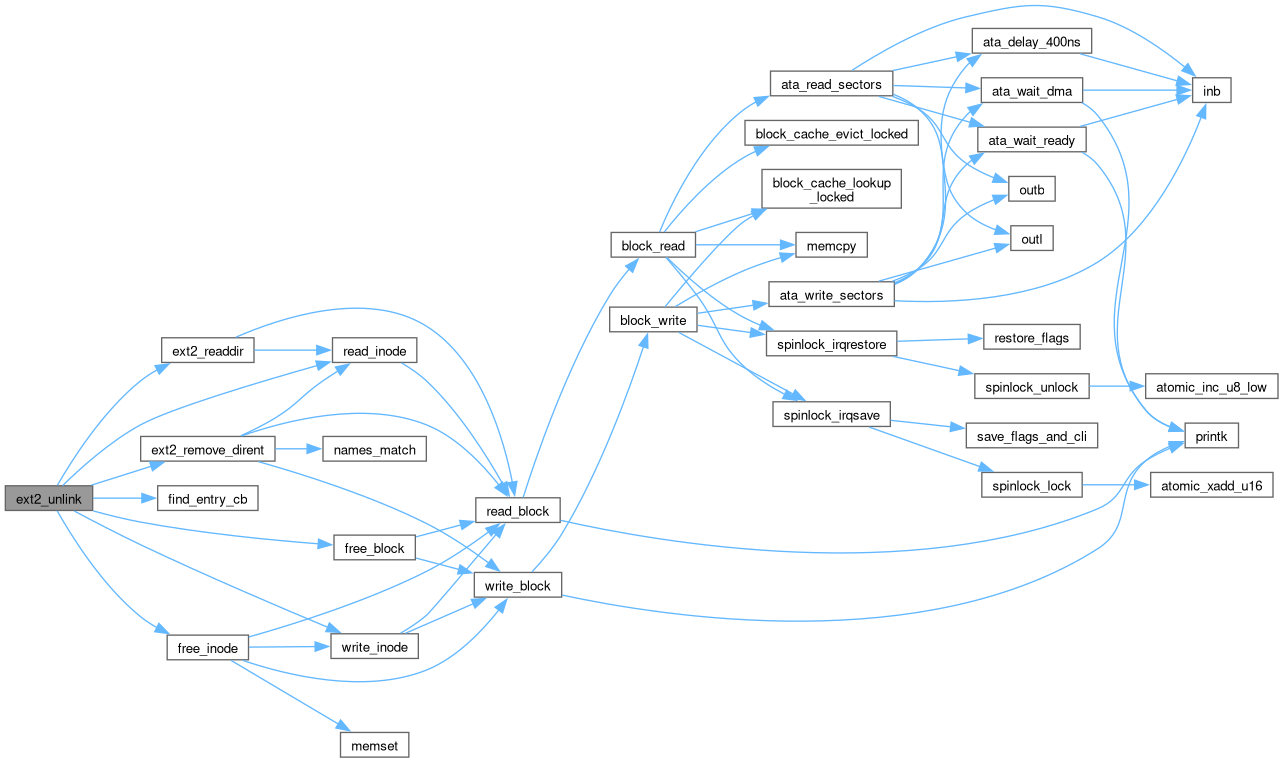

Here is the call graph for this function:

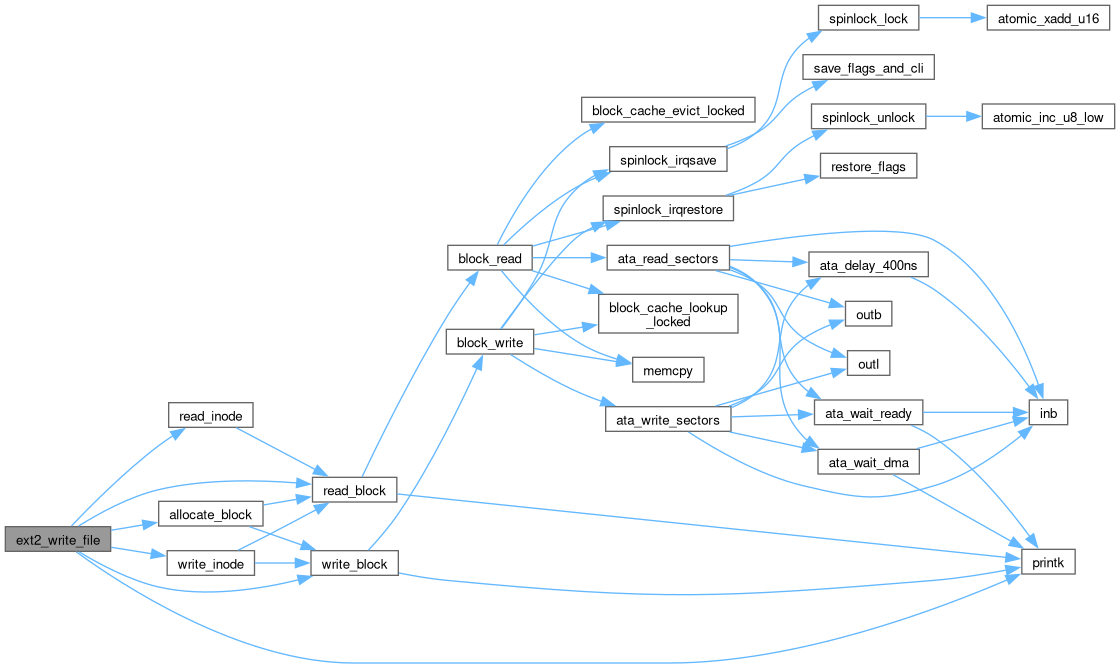

ext2_write_file()

int ext2_write_file	(	uint32_t	ino,
		uint64_t	off,
		const void *	buf,
		uint32_t	len )

ext2_write_file() - Write bytes to an inode's data blocks, allocating as needed. @ino: Inode number of the target regular file. @off: Byte offset within the file. @buf: Source data. @len: Number of bytes to write.

For each block touched by the range [off, off+len):

• If the block is not yet allocated (i_block[k]==0), allocate it and zero it.
• If the write is a partial block, read-modify-write (read existing, patch bytes).
• If the write covers a full block, write directly without reading first. Updates i_size = max(i_size, off + bytes_written). Does NOT write back the inode (caller calls ext2_flush_inode then ata_flush via vfs_close).

Returns

: Number of bytes written, or -1 on I/O or allocation error.

Here is the call graph for this function:

find_entry_cb()

int find_entry_cb ( const char * name, uint8_t nlen, uint32_t ino, uint8_t ftype, void * ud )

static

Here is the caller graph for this function:

free_block()

int free_block ( uint32_t block_no )

static

Here is the call graph for this function:

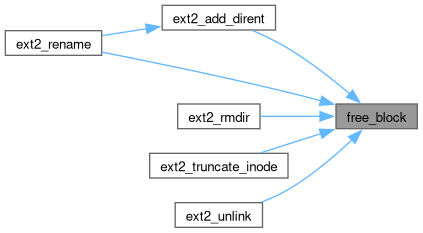

Here is the caller graph for this function:

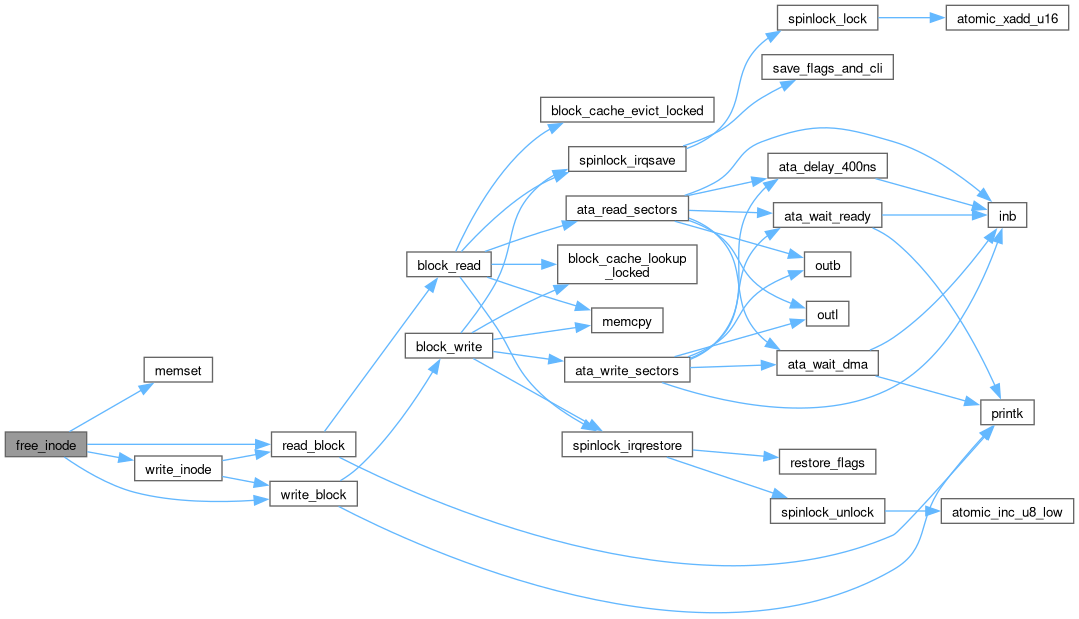

free_inode()

int free_inode ( uint32_t ino )

static

Here is the call graph for this function:

Here is the caller graph for this function:

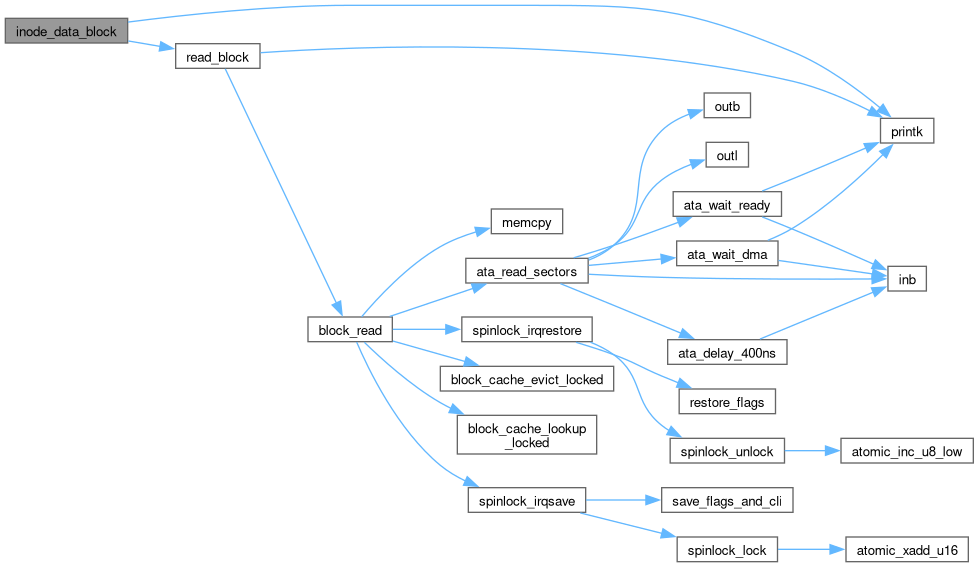

inode_data_block()

int inode_data_block ( const ext2_inode_t * inode, uint32_t block_idx, uint32_t * block_no )

static

Here is the call graph for this function:

Here is the caller graph for this function:

inode_vfs_type()

uint8_t inode_vfs_type ( const ext2_inode_t * inode )

static

Here is the caller graph for this function:

names_match()

int names_match ( const char * name, uint8_t nlen, const char * target )

static

Here is the caller graph for this function:

read_block()

int read_block ( uint32_t block_no, void * buf )

static

Here is the call graph for this function:

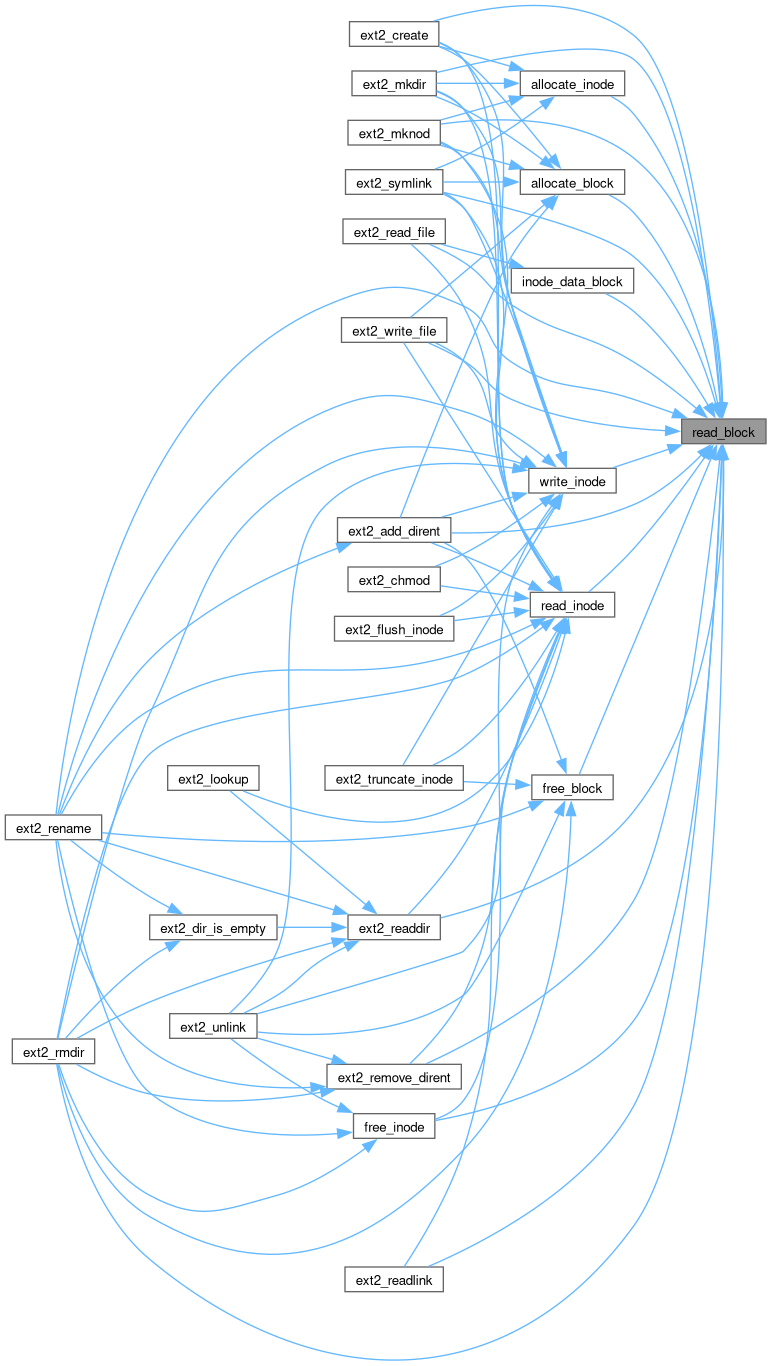

Here is the caller graph for this function:

read_inode()

int read_inode ( uint32_t ino, ext2_inode_t * out )

static

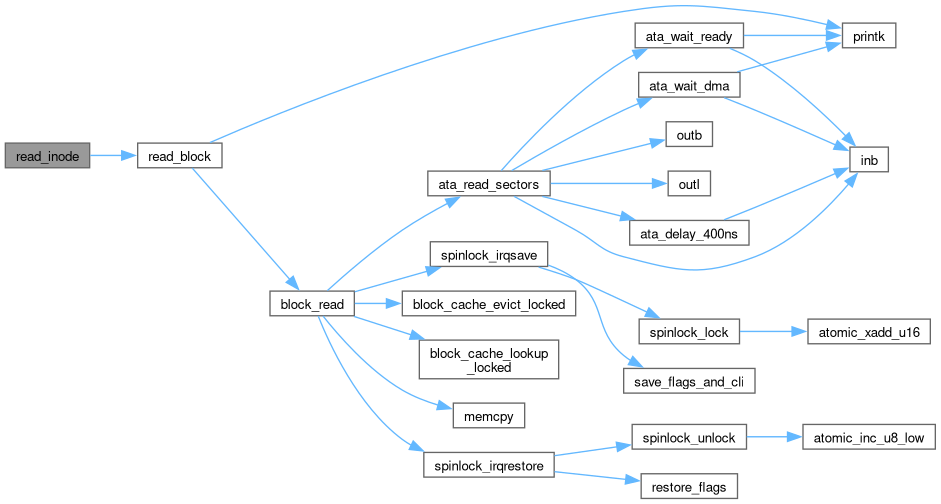

Here is the call graph for this function:

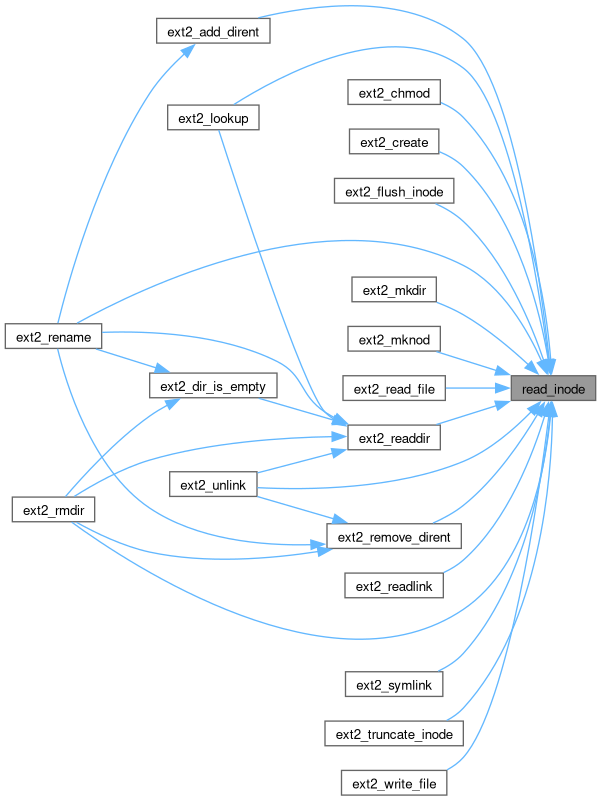

Here is the caller graph for this function:

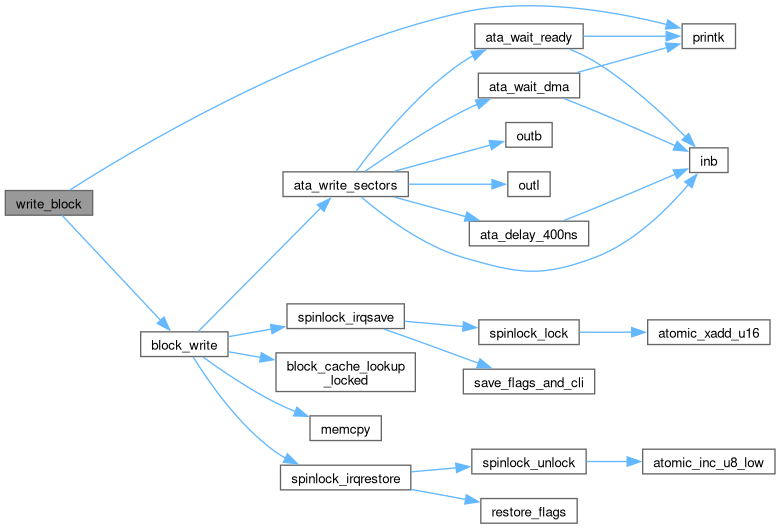

write_block()

int write_block ( uint32_t block_no, const void * buf )

static

Here is the call graph for this function:

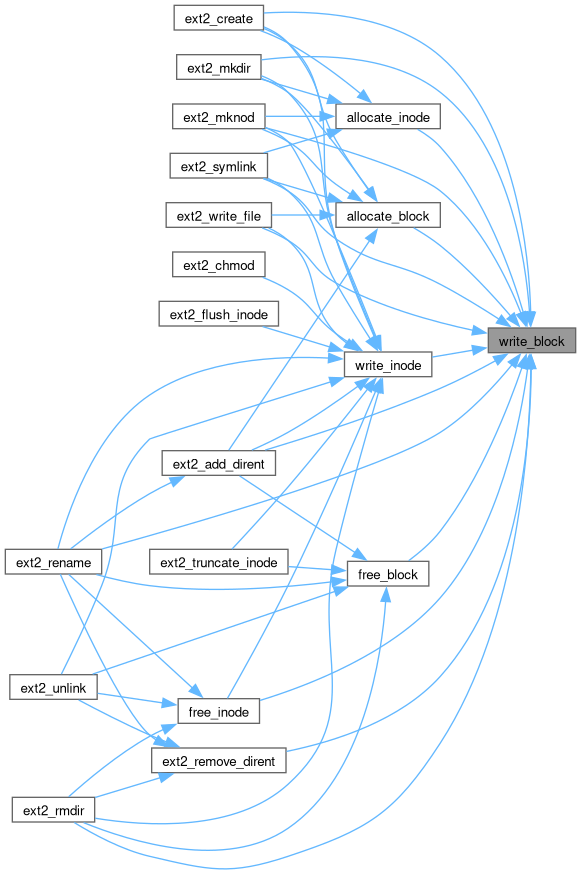

Here is the caller graph for this function:

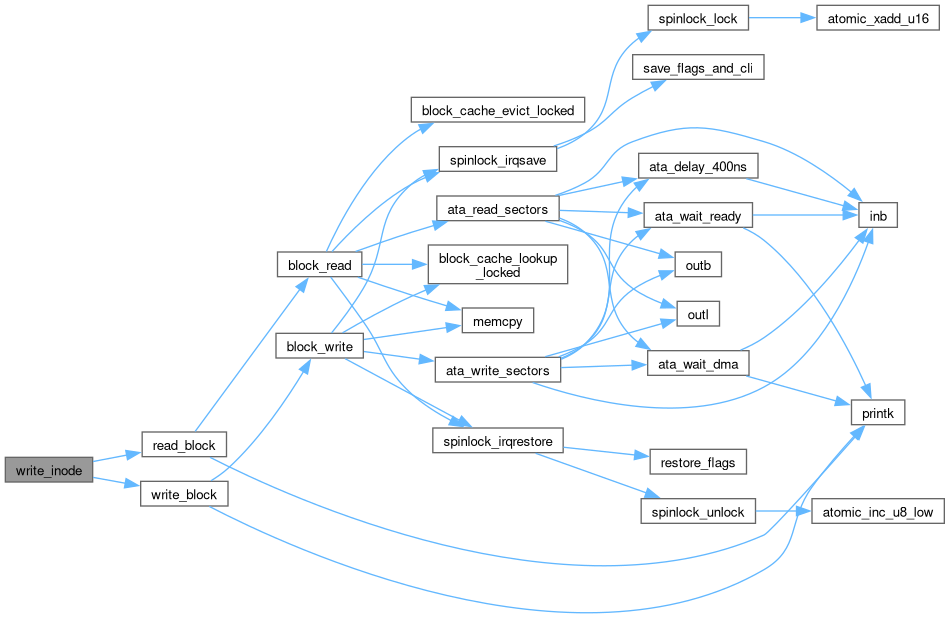

write_inode()

int write_inode ( uint32_t ino, const ext2_inode_t * in )

static

Here is the call graph for this function:

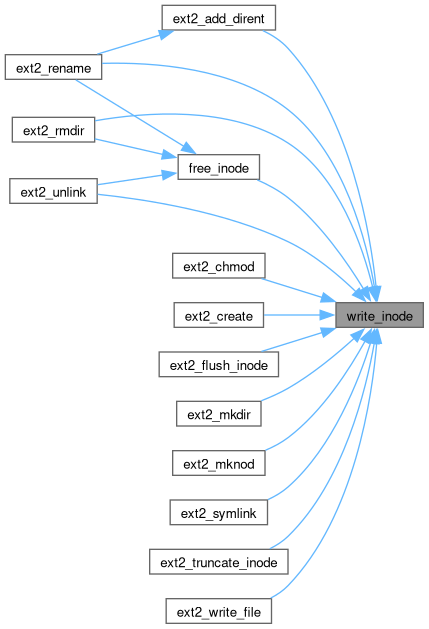

Here is the caller graph for this function:

Variable Documentation

g_block_buf

uint8_t g_block_buf[4096]

static

g_block_size

uint32_t g_block_size

static

g_blocks_per_group

uint32_t g_blocks_per_group

static

g_dindirect_buf

uint8_t g_dindirect_buf[4096]

static

g_ext2_vfs_ops

vfs_ops_t g_ext2_vfs_ops

static

Initial value:

                                = {
    .lookup   = ext2_lookup,
    .read     = ext2_read_file,
    .readdir  = ext2_readdir,
    .write    = ext2_write_file,
    .flush    = ext2_flush_inode,
    .create   = ext2_create,
    .unlink   = ext2_unlink,
    .rename   = ext2_rename,
    .mkdir    = ext2_mkdir,
    .rmdir    = ext2_rmdir,
    .truncate = ext2_truncate_inode,
    .readlink = ext2_readlink,
    .symlink  = ext2_symlink,
    .mknod    = ext2_mknod,
    .chmod    = ext2_chmod,
    .statfs   = ext2_statfs,
}

g_first_data_block

uint32_t g_first_data_block

static

g_indirect_buf

uint8_t g_indirect_buf[4096]

static

g_inode_size

uint32_t g_inode_size

static

g_inodes_per_group

uint32_t g_inodes_per_group

static

g_part_end

uint64_t g_part_end

static

g_part_start

uint64_t g_part_start

static

g_sb_blocks_count

uint32_t g_sb_blocks_count

static

g_sb_inodes_count

uint32_t g_sb_inodes_count

static

g_sectors_per_block

uint32_t g_sectors_per_block

static
