#include <miniOS/types.h>
#include <miniOS/fs/ext2.h>
#include <miniOS/fs/pipe.h>

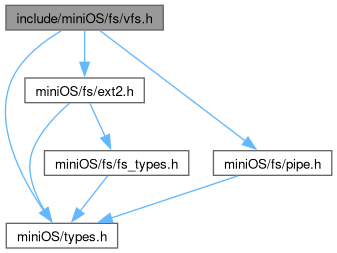

Include dependency graph for vfs.h:

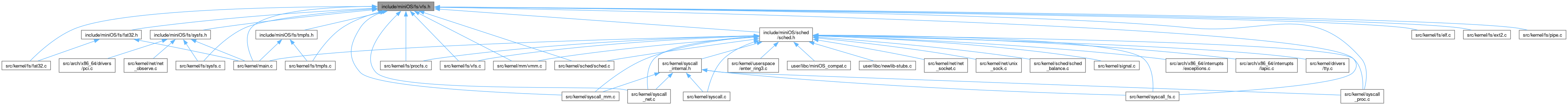

This graph shows which files directly or indirectly include this file:

Classes
struct	vfs_inode_info
struct	vfs_statfs
struct	vfs_ops
struct	filesystem_type
struct	vfs_mount
struct	vfs_file

Macros
#define	VFS_MAX_FDS 64 /* max open files per task */
#define	VFS_PATH_MAX 256 /* max path length */
#define	VFS_FD_STDIN 0
#define	VFS_FD_STDOUT 1
#define	VFS_FD_STDERR 2
#define	VFS_FIRST_OPEN_FD 3
#define	VFS_FILE_TYPE_REG 1
#define	VFS_FILE_TYPE_DIR 2
#define	VFS_FILE_TYPE_PIPE 3 /* anonymous pipe backed by ring buffer */
#define	VFS_FILE_TYPE_SYMLINK 4 /* symbolic link; used by lstat to detect symlink targets */
#define	VFS_FILE_TYPE_CHAR 5 /* character device node */
#define	VFS_FILE_TYPE_BLK 6 /* block device node */
#define	VFS_FILE_TYPE_SOCKET 7 /* BSD-style socket backed by lwIP PCB */
#define	VFS_FILE_TYPE_UNIX_SOCKET 8 /* AF_UNIX socket backed by unix_sock_t */
#define	VFS_DEVICE_NONE 0
#define	VFS_DEVICE_TTY 1
#define	VFS_DEVICE_NULL 2
#define	VFS_MAX_FS_TYPES 16
#define	VFS_MAX_MOUNTS 16

Typedefs
typedef struct vfs_inode_info	vfs_inode_info_t
typedef struct vfs_statfs	vfs_statfs_t
typedef struct vfs_ops	vfs_ops_t
typedef struct filesystem_type	filesystem_type_t
typedef struct vfs_mount	vfs_mount_t
typedef struct vfs_file	vfs_file_t

Functions
int	register_filesystem (const char name, int(mount)(const char source, const char target, const void *data))
int	vfs_mount_fstype (const char fstype, const char source, const char target, const void data)
int	vfs_register_mount (const char point, vfs_ops_t ops, uint32_t root_ino)
int	vfs_mount_count (void)
const vfs_mount_t *	vfs_get_mount (int idx)
int	vfs_path_devno (const char *path)
int	vfs_fd_devno (int fd)
void	vfs_mount (vfs_ops_t *ops)
int	vfs_open (const char *path, int flags, int mode)
int	vfs_read (int fd, void *buf, uint32_t len)
int	vfs_readdir (int fd, vfs_dirent_cb_t cb, void *ud)
int	vfs_write (int fd, const void *buf, uint32_t len)
int	vfs_close (int fd)
int	vfs_unlink (const char *path)
int	vfs_rename (const char oldpath, const char newpath)
int	vfs_rmdir (const char *path)
int	vfs_mkdir (const char *path, int mode)
int	vfs_stat (const char path, vfs_inode_info_t out)
int	vfs_statfs (const char path, vfs_statfs_t out)
int	vfs_fstatfs (int fd, vfs_statfs_t *out)
int	vfs_fstat (int fd, vfs_inode_info_t *out)
int	vfs_lstat (const char path, vfs_inode_info_t out)
int	vfs_symlink (const char path, const char target)
int	vfs_chmod (const char *path, uint16_t mode)
int	vfs_mknod (const char *path, uint16_t mode, uint32_t dev)
int	vfs_readlink (const char path, char buf, uint32_t bufsiz)

Macro Definition Documentation

◆ VFS_DEVICE_NONE

#define VFS_DEVICE_NONE 0

◆ VFS_DEVICE_NULL

#define VFS_DEVICE_NULL 2

◆ VFS_DEVICE_TTY

#define VFS_DEVICE_TTY 1

◆ VFS_FD_STDERR

#define VFS_FD_STDERR 2

◆ VFS_FD_STDIN

#define VFS_FD_STDIN 0

◆ VFS_FD_STDOUT

#define VFS_FD_STDOUT 1

◆ VFS_FILE_TYPE_BLK

#define VFS_FILE_TYPE_BLK 6 /* block device node */

◆ VFS_FILE_TYPE_CHAR

#define VFS_FILE_TYPE_CHAR 5 /* character device node */

◆ VFS_FILE_TYPE_DIR

#define VFS_FILE_TYPE_DIR 2

◆ VFS_FILE_TYPE_PIPE

#define VFS_FILE_TYPE_PIPE 3 /* anonymous pipe backed by ring buffer */

◆ VFS_FILE_TYPE_REG

#define VFS_FILE_TYPE_REG 1

◆ VFS_FILE_TYPE_SOCKET

#define VFS_FILE_TYPE_SOCKET 7 /* BSD-style socket backed by lwIP PCB */

◆ VFS_FILE_TYPE_SYMLINK

#define VFS_FILE_TYPE_SYMLINK 4 /* symbolic link; used by lstat to detect symlink targets */

◆ VFS_FILE_TYPE_UNIX_SOCKET

#define VFS_FILE_TYPE_UNIX_SOCKET 8 /* AF_UNIX socket backed by unix_sock_t */

◆ VFS_FIRST_OPEN_FD

#define VFS_FIRST_OPEN_FD 3

◆ VFS_MAX_FDS

#define VFS_MAX_FDS 64 /* max open files per task */

◆ VFS_MAX_FS_TYPES

#define VFS_MAX_FS_TYPES 16

◆ VFS_MAX_MOUNTS

#define VFS_MAX_MOUNTS 16

◆ VFS_PATH_MAX

#define VFS_PATH_MAX 256 /* max path length */

Typedef Documentation

◆ filesystem_type_t

typedef struct filesystem_type filesystem_type_t

◆ vfs_file_t

typedef struct vfs_file vfs_file_t

◆ vfs_inode_info_t

typedef struct vfs_inode_info vfs_inode_info_t

◆ vfs_mount_t

typedef struct vfs_mount vfs_mount_t

◆ vfs_ops_t

typedef struct vfs_ops vfs_ops_t

◆ vfs_statfs_t

typedef struct vfs_statfs vfs_statfs_t

Function Documentation

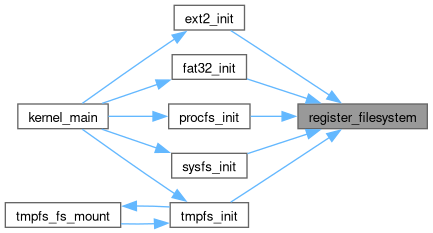

◆ register_filesystem()

int register_filesystem	(	const char *	name,
		int(*	mount )(const char source, const char target, const void *data) )

Here is the call graph for this function:

Here is the caller graph for this function:

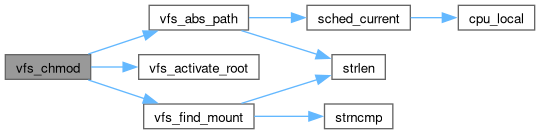

◆ vfs_chmod()

int vfs_chmod	(	const char *	path,
		uint16_t	mode )

vfs_chmod() - Change the permission bits of a file by absolute path. @path: Absolute path to the file. @mode: New permission bits (low 12 bits only; type bits are preserved).

Returns: : 0 on success, -1 on error.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_close()

int vfs_close ( int fd )

vfs_close() - Release an open file descriptor, flushing write data to disk. @fd: File descriptor to close (0 to VFS_MAX_FDS-1).

If the file was opened with write flags and ops->flush is set, calls ops->flush(inode) to write back the final inode state, then calls ata_flush() to push the ATA write-back cache to stable storage. Clears the in_use flag in the calling task's fd_table entry.

Returns: : 0 on success, -1 if @fd is out of range or not open.

vfs_close() - Release an open file descriptor, flushing write data to disk. @fd: File descriptor to close.

If the file was opened with write flags and ops->flush is set, calls ops->flush(inode) to write back the final inode state, then calls ata_flush() to push the ATA write-back cache to stable storage (EXT2W-07).

Returns: : 0 on success, -1 on invalid or already-closed fd.

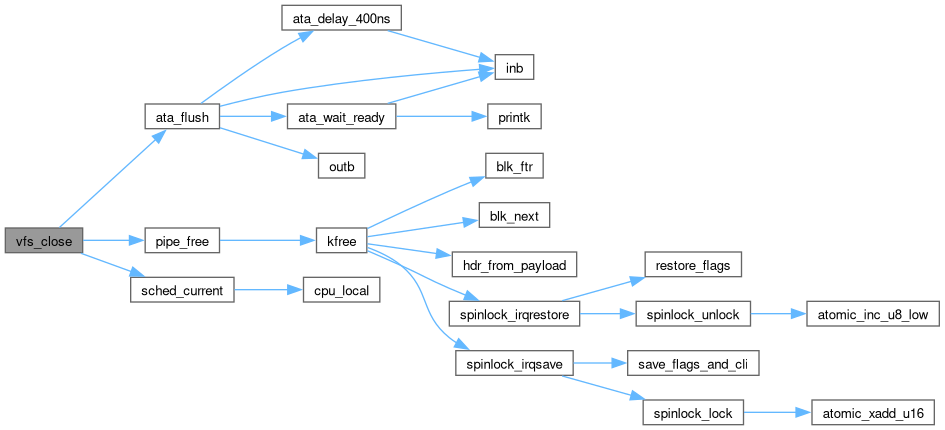

Here is the call graph for this function:

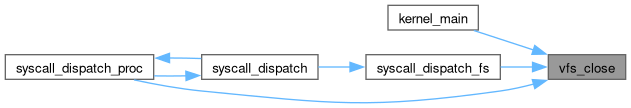

Here is the caller graph for this function:

◆ vfs_fd_devno()

int vfs_fd_devno ( int fd )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_fstat()

int vfs_fstat	(	int	fd,
		vfs_inode_info_t *	out )

vfs_fstat() - Get metadata from an open file descriptor. @fd: Open file descriptor. @out: Output struct populated on success.

Returns: : 0 on success, -1 on bad fd.

vfs_fstat() - Get file metadata from an open file descriptor. @fd: Open fd (must be VFS_FIRST_OPEN_FD <= fd < VFS_MAX_FDS, in_use). @out: Populated with inode, ftype, size on success.

Returns: : 0 on success, -1 on bad fd.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_fstatfs()

int vfs_fstatfs	(	int	fd,
		vfs_statfs_t *	out )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_get_mount()

const vfs_mount_t * vfs_get_mount ( int idx )

Here is the caller graph for this function:

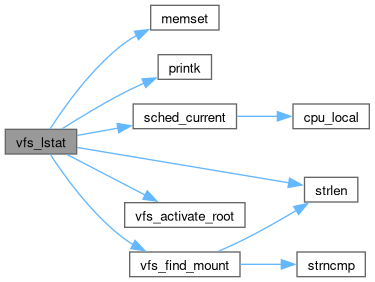

◆ vfs_lstat()

int vfs_lstat	(	const char *	path,
		vfs_inode_info_t *	out )

vfs_lstat() - Look up file metadata by absolute path WITHOUT following symlinks. @path: Absolute path. @out: Output struct populated on success.

Returns: : 0 on success, -1 on error.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_mkdir()

int vfs_mkdir	(	const char *	path,
		int	mode )

vfs_mkdir() - Create a directory by absolute path. @path: Absolute path of the new directory (e.g., "/tmp/newdir"). @mode: Permission bits (accepted, passed through to ops->mkdir).

Returns: : 0 on success, -1 if parent not found, ops->mkdir is NULL, or creation fails.

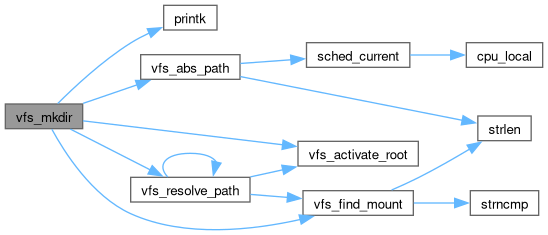

Here is the call graph for this function:

Here is the caller graph for this function:

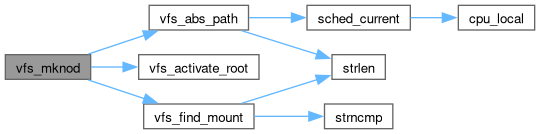

◆ vfs_mknod()

int vfs_mknod	(	const char *	path,
		uint16_t	mode,
		uint32_t	dev )

vfs_mknod() - Create a device special file by absolute path. @path: Absolute path of the new device node. @mode: EXT2_S_IFCHR|perms or EXT2_S_IFBLK|perms. @dev: Encoded device number (major<<8)|minor.

Returns: : 0 on success, -1 on error, -22 on bad mode.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_mount()

void vfs_mount ( vfs_ops_t * ops )

vfs_mount() - Register a filesystem's operations table (backwards-compat shim). @ops: Pointer to a vfs_ops_t struct with lookup, read, and readdir function pointers. Must point to static storage valid for the kernel lifetime.

Calls vfs_register_mount("/", ops) to mount the filesystem at root. Kept for backwards compatibility — prefer vfs_register_mount() for new code.

vfs_mount() - Store the filesystem ops table at root "/" (backwards-compat shim). @ops: Pointer to filesystem ops (must have lookup, read, readdir set).

Calls vfs_register_mount("/", ops). Kept for backwards compatibility.

Here is the call graph for this function:

◆ vfs_mount_count()

int vfs_mount_count ( void )

Here is the caller graph for this function:

◆ vfs_mount_fstype()

int vfs_mount_fstype	(	const char *	fstype,
		const char *	source,
		const char *	target,
		const void *	data )

vfs_mount_fstype() - Look up a registered filesystem type and mount it. @fstype: Filesystem type name (e.g. "ext2", "sysfs"). @source: Device/source string forwarded to the mount callback (may be NULL). @target: Absolute mount point path (e.g. "/", "/sys"). @data: Filesystem-specific options pointer forwarded to the mount callback (may be NULL for pseudo-filesystems that need no extra parameters).

Returns: : 0 on success, -22 (EINVAL) if @fstype is not registered, or the negative errno returned by the filesystem's mount callback.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_open()

int vfs_open	(	const char *	path,
		int	flags,
		int	mode )

vfs_open() - Open or create a file by absolute path. @path: Absolute path to the file or directory (e.g., "/etc/passwd"). @flags: O_RDONLY (0), O_WRONLY (1), O_CREAT (0x0200). O_CREAT creates file if missing. @mode: File permission bits (accepted but ignored; all files created with 0644).

Calls g_mounted_ops->lookup() to resolve the path to typed inode metadata. If O_CREAT is set and file not found, creates a new file via ext2_create(). Allocates a file descriptor in the calling task's fd_table (per-thread; up to VFS_MAX_FDS=16 concurrent open files). Initialises the vfs_file_t entry with offset=0 and the resolved inode metadata.

Returns: : File descriptor (VFS_FIRST_OPEN_FD to VFS_MAX_FDS-1) on success, -1 if the path is not found, creation fails, or all fds are in use.

vfs_open() - Open or create a file by absolute path. @path: Absolute path. @flags: O_RDONLY (0), O_WRONLY (1), O_CREAT (0x0200). O_CREAT creates file if missing. O_TRUNC (0x0400): Truncate existing regular file to zero on open. @mode: File permission bits for O_CREAT (lower 9 bits used; 0 → 0644 default). Write permission on the parent directory is enforced before creation.

Resolves path through the mount table using longest-prefix match. If O_CREAT is set and lookup fails: parses the parent path, looks up parent inode, and calls the FS create op to allocate a new inode and directory entry.

Returns: : fd index (VFS_FIRST_OPEN_FD to VFS_MAX_FDS-1), or -1 on error.

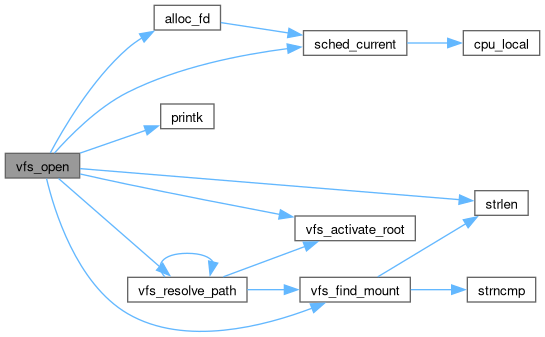

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_path_devno()

int vfs_path_devno ( const char * path )

Here is the call graph for this function:

Here is the caller graph for this function:

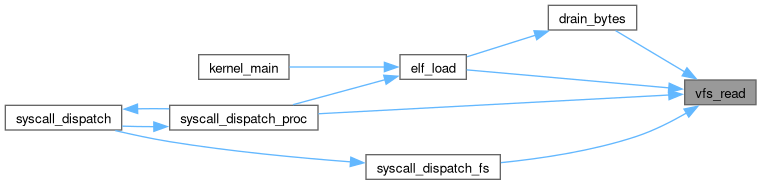

◆ vfs_read()

int vfs_read	(	int	fd,
		void *	buf,
		uint32_t	len )

vfs_read() - Read bytes from an open file descriptor. @fd: File descriptor returned by vfs_open. @buf: Destination buffer. @len: Maximum number of bytes to read.

Dispatches to g_mounted_ops->read() with the fd's inode number and current offset. Advances the offset by the number of bytes read.

Returns: : Number of bytes read (may be less than @len at EOF), 0 at EOF, or -1 on error (invalid fd or read failure).

vfs_read() - Dispatch a read to the mounted filesystem. @fd: Open file descriptor. @buf: Destination buffer. @len: Byte count requested.

Validates fd in range and in_use. Calls fd_table[fd].ops->read() with the stored inode and current offset. Advances offset by bytes_read.

Returns: : Bytes read, 0 at EOF, -1 on bad fd or read error.

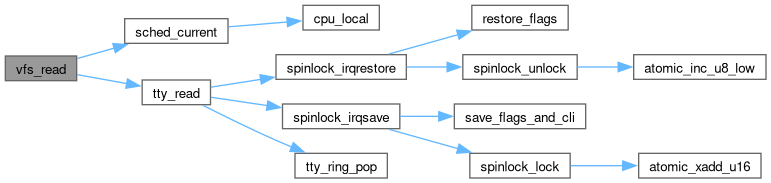

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_readdir()

int vfs_readdir	(	int	fd,
		vfs_dirent_cb_t	cb,
		void *	ud )

vfs_readdir() - Iterate directory entries from an open directory fd. @fd: File descriptor of an open directory (must have ftype == VFS_FILE_TYPE_DIR). @cb: Callback invoked per entry (name, name_len, inode, file_type, ud). @ud: Opaque user data forwarded to @cb.

Dispatches to g_mounted_ops->readdir() with the fd's inode number and current directory offset.

Returns: : 0 when all entries visited, non-zero value from @cb if stopped early, or -1 on invalid fd or if fd is not a directory.

vfs_readdir() - Dispatch directory iteration to the mounted filesystem. @fd: Open file descriptor (must be a directory; ftype == VFS_FILE_TYPE_DIR). @cb: Entry callback. @ud: Opaque user data for @cb.

Validates fd and ftype. Calls fd_table[fd].ops->readdir() with the stored inode, forwarding @cb and @ud.

Returns: : 0 when all entries visited, non-zero from @cb, or -1 on bad fd.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_readlink()

int vfs_readlink	(	const char *	path,
		char *	buf,
		uint32_t	bufsiz )

vfs_readlink() - Read symlink target into buf without following. @path: Absolute path to a symlink inode. @buf: Output buffer (NOT null-terminated per POSIX). @bufsiz: Size of buf.

Returns: : Number of bytes written, or -1 if not a symlink or error.

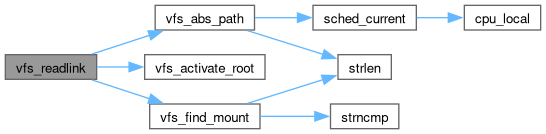

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_register_mount()

int vfs_register_mount	(	const char *	point,
		vfs_ops_t *	ops,
		uint32_t	root_ino )

vfs_register_mount() - Register a filesystem at a mount point. @point: Absolute mount point path (e.g. "/", "/tmp"). Copied into mount table. @ops: Pointer to vfs_ops_t with at least lookup, read, readdir set.

Stores entry in g_mounts[]. Up to VFS_MAX_MOUNTS=8 mounts supported. @root_ino: Starting inode for path resolution (pass 0 for fs-default).

Returns: : 0 on success, -1 if mount table is full.

vfs_register_mount() - Register a filesystem at a mount point. @point: Absolute mount point path (e.g. "/", "/tmp"). Copied into mount table. @ops: Pointer to vfs_ops_t with at least lookup, read, readdir set.

Stores entry in g_mounts[]. Up to VFS_MAX_MOUNTS=8 mounts supported.

Returns: : 0 on success, -1 if mount table is full.

Here is the call graph for this function:

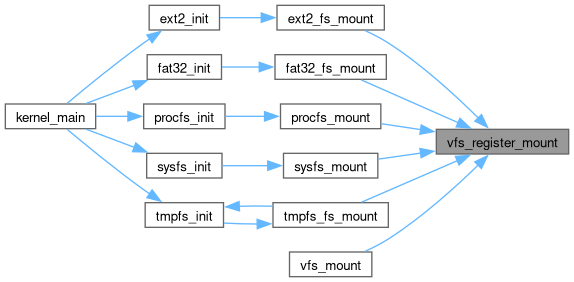

Here is the caller graph for this function:

◆ vfs_rename()

int vfs_rename	(	const char *	oldpath,
		const char *	newpath )

vfs_rename() - Rename or move a file or directory. @oldpath: Absolute path of the source. @newpath: Absolute path of the destination.

Both paths must be on the same mounted filesystem (EXDEV otherwise). If @newpath already exists as a file it is atomically replaced. Directories cannot be overwritten (returns ENOTEMPTY).

Returns: : 0 on success, or a negative errno-style value on failure.

Here is the call graph for this function:

Here is the caller graph for this function:

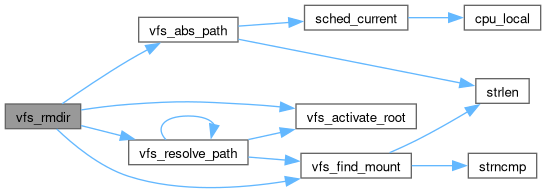

◆ vfs_rmdir()

int vfs_rmdir ( const char * path )

vfs_rmdir() - Delete an empty directory by absolute path. @path: Absolute path of the directory to remove.

Resolves the mount point for @path, looks up the parent directory inode, then calls ops->rmdir(parent_ino, dirname).

Returns: : 0 on success or a negative errno-style value on failure.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_stat()

int vfs_stat	(	const char *	path,
		vfs_inode_info_t *	out )

vfs_stat() - Look up file metadata by absolute path. @path: Absolute path. @out: Output struct populated on success.

Returns: : 0 on success, -1 on error.

vfs_stat() - Look up file metadata by absolute path. @path: Absolute path to query. @out: Populated with inode, file_type, size on success.

Returns: : 0 on success, -1 if path not found or no mount.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_statfs()

int vfs_statfs	(	const char *	path,
		vfs_statfs_t *	out )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_symlink()

int vfs_symlink	(	const char *	path,
		const char *	target )

vfs_symlink() - Create a symbolic link at path pointing to target. @path: Absolute path of the new symlink. @target: Symlink target string (stored as-is; may be relative or absolute).

Returns: : 0 on success, -1 on error.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_unlink()

int vfs_unlink ( const char * path )

vfs_unlink() - Delete a file by absolute path. @path: Absolute path of the file to remove (e.g., "/tmp/foo.txt").

Resolves the mount point for @path, looks up the parent directory inode, then calls ops->unlink(parent_ino, filename). Immediate deletion.

Returns: : 0 on success, -1 if not found, ops->unlink is NULL, or delete fails.

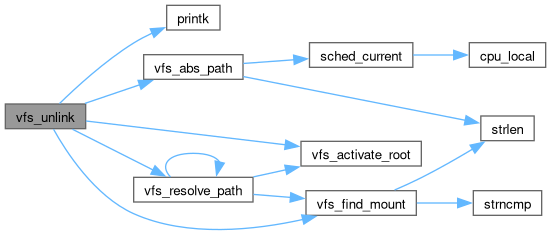

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vfs_write()

int vfs_write	(	int	fd,
		const void *	buf,
		uint32_t	len )

vfs_write() - Write bytes to an open file descriptor. @fd: File descriptor returned by vfs_open with O_WRONLY. @buf: Source buffer. @len: Number of bytes to write.

Dispatches to g_mounted_ops->write() with the fd's inode and current offset. Advances offset by the number of bytes written.

Returns: : Number of bytes written, or -1 on error (invalid fd, write failure).

vfs_write() - Dispatch a write to the mounted filesystem. @fd: Open file descriptor with O_WRONLY flag. @buf: Source buffer. @len: Byte count to write.

Validates fd. Calls fd_table[fd].ops->write() with the stored inode and current offset. Advances offset and updates size if write extends file.

Returns: : Bytes written, or -1 on bad fd or write error.

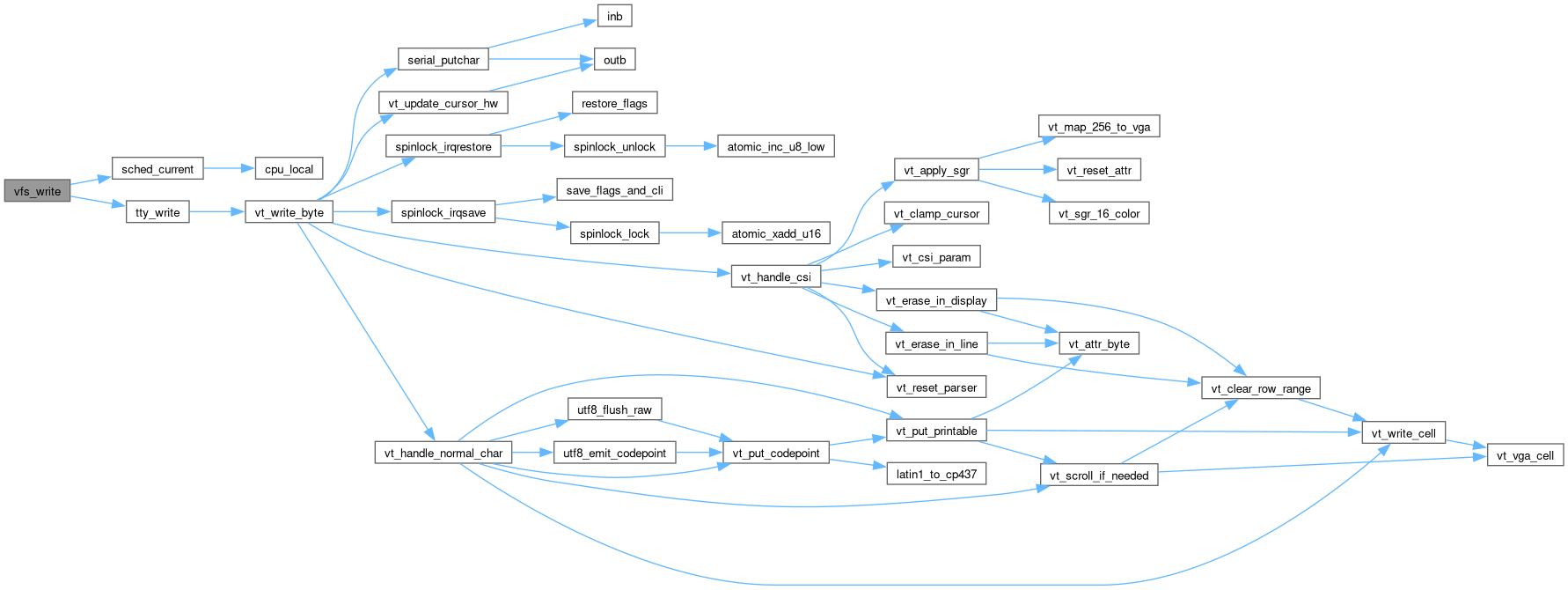

Here is the call graph for this function:

Here is the caller graph for this function:

Classes

Macros

Typedefs

Functions

Macro Definition Documentation

◆ VFS_DEVICE_NONE

◆ VFS_DEVICE_NULL

◆ VFS_DEVICE_TTY

◆ VFS_FD_STDERR

◆ VFS_FD_STDIN

◆ VFS_FD_STDOUT

◆ VFS_FILE_TYPE_BLK

◆ VFS_FILE_TYPE_CHAR

◆ VFS_FILE_TYPE_DIR

◆ VFS_FILE_TYPE_PIPE

◆ VFS_FILE_TYPE_REG

◆ VFS_FILE_TYPE_SOCKET

◆ VFS_FILE_TYPE_SYMLINK

◆ VFS_FILE_TYPE_UNIX_SOCKET

◆ VFS_FIRST_OPEN_FD

◆ VFS_MAX_FDS

◆ VFS_MAX_FS_TYPES

◆ VFS_MAX_MOUNTS

◆ VFS_PATH_MAX

Typedef Documentation

◆ filesystem_type_t

◆ vfs_file_t

◆ vfs_inode_info_t

◆ vfs_mount_t

◆ vfs_ops_t

◆ vfs_statfs_t

Function Documentation

◆ register_filesystem()

◆ vfs_chmod()

◆ vfs_close()

◆ vfs_fd_devno()

◆ vfs_fstat()

◆ vfs_fstatfs()

◆ vfs_get_mount()

◆ vfs_lstat()

◆ vfs_mkdir()

◆ vfs_mknod()

◆ vfs_mount()

◆ vfs_mount_count()

◆ vfs_mount_fstype()

◆ vfs_open()

◆ vfs_path_devno()

◆ vfs_read()

◆ vfs_readdir()

◆ vfs_readlink()

◆ vfs_register_mount()

◆ vfs_rename()

◆ vfs_rmdir()

◆ vfs_stat()

◆ vfs_statfs()

◆ vfs_symlink()

◆ vfs_unlink()

◆ vfs_write()
