elf.h File Reference

#include <miniOS/types.h>

Include dependency graph for elf.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	__attribute__
struct	Elf64_Dyn
struct	Elf64_Rela

Macros
#define	ELFMAG   "\177ELF"
#define	ET_EXEC   2
#define	ET_DYN   3 /* position-independent executable (PIE) */
#define	EM_X86_64   62
#define	PT_LOAD   1
#define	PT_DYNAMIC   2
#define	DT_NULL   0
#define	DT_RELA   7
#define	DT_RELASZ   8
#define	DT_RELAENT   9
#define	R_X86_64_RELATIVE   8
#define	ELF64_R_TYPE(i)
#define	ELF_PIE_BASE   0x400000ULL
#define	PF_X   1 /* Execute */
#define	PF_W   2 /* Write */
#define	PF_R   4 /* Read */

Functions
int	elf_load (int fd, uint64_t *entry_out, uint64_t *image_end_out, uint64_t *phdr_va_out, uint16_t *phnum_out)

Macro Definition Documentation

DT_NULL

#define DT_NULL   0

DT_RELA

#define DT_RELA   7

DT_RELAENT

#define DT_RELAENT   9

DT_RELASZ

#define DT_RELASZ   8

ELF64_R_TYPE

#define ELF64_R_TYPE

(

i

)

Value:

((uint32_t)(i))

ELF_PIE_BASE

#define ELF_PIE_BASE   0x400000ULL

ELFMAG

#define ELFMAG   "\177ELF"

EM_X86_64

#define EM_X86_64   62

ET_DYN

#define ET_DYN   3 /* position-independent executable (PIE) */

ET_EXEC

#define ET_EXEC   2

PF_R

#define PF_R   4 /* Read */

PF_W

#define PF_W   2 /* Write */

PF_X

#define PF_X   1 /* Execute */

PT_DYNAMIC

#define PT_DYNAMIC   2

PT_LOAD

#define PT_LOAD   1

R_X86_64_RELATIVE

#define R_X86_64_RELATIVE   8

Function Documentation

elf_load()

int elf_load	(	int	fd,
		uint64_t *	entry_out,
		uint64_t *	image_end_out,
		uint64_t *	phdr_va_out,
		uint16_t *	phnum_out )

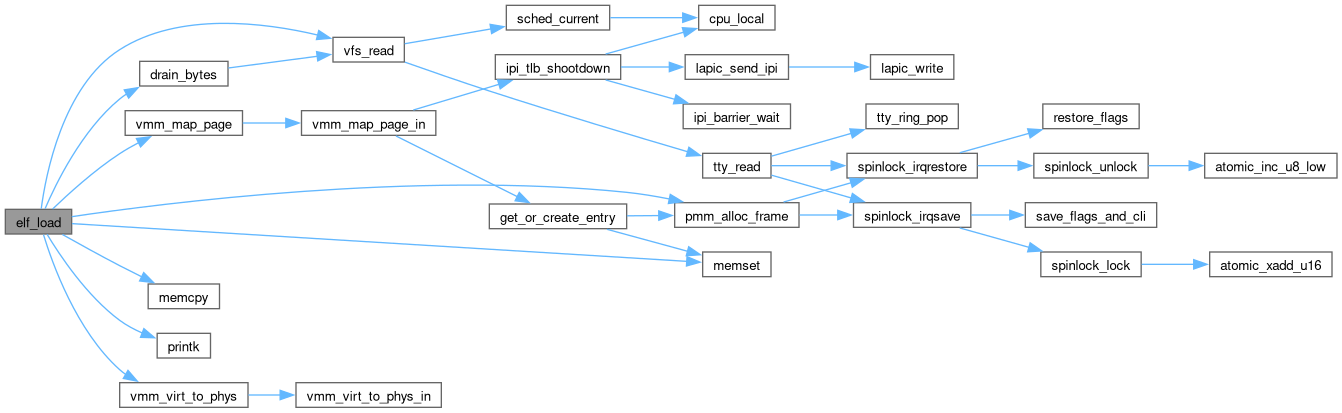

Here is the call graph for this function:

Here is the caller graph for this function:
